The Waveshare 1.5 inch RGB OLED display module is a compact screen designed for electronics enthusiasts and developers. It features a 128x128 pixel resolution with 16-bit color support, delivering clear and vibrant visuals for various projects.
This module suits applications like wearable devices, IoT prototypes, or custom interfaces. For instance, it can display real-time data on a Raspberry Pi-based weather station, thanks to its easy SPI connectivity and included development resources.
- 128x128 resolution with 65K colors for detailed, colorful graphics
- Supports 4-wire or 3-wire SPI interface, selectable via onboard resistor for flexible integration
- Embedded SSD1351 driver ensures reliable performance with 3.3V or 5V operation
- Wide viewing angle over 160 degrees for better visibility from different angles

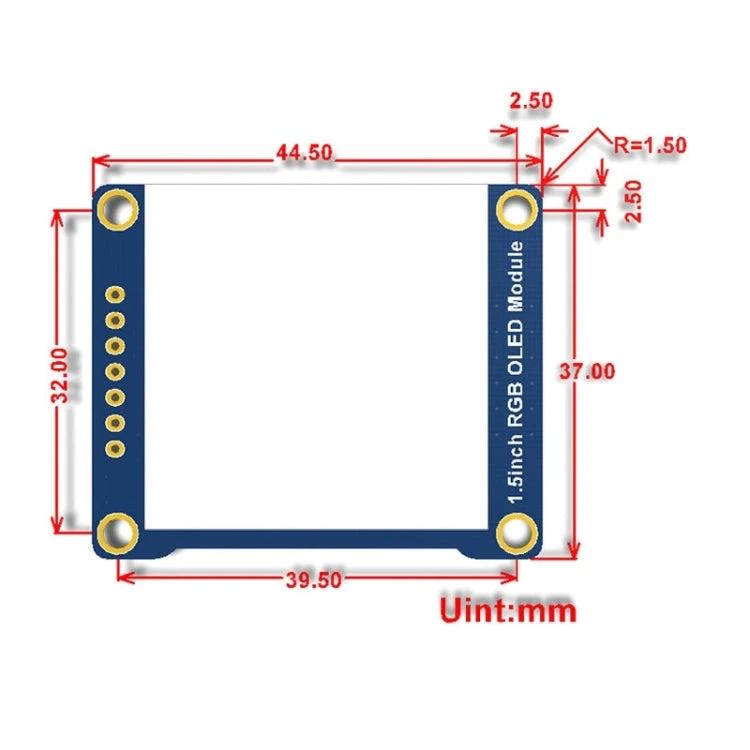

- Compact dimensions of 44.5 x 37 mm, ideal for space-constrained designs
- Includes development examples for Raspberry Pi, Arduino, and STM32 to speed up prototyping
Light specifications: Operates at 3.3V or 5V, with a standard PH2.0 connector for straightforward setup. This module fits well in hands-on projects for those with basic electronics knowledge, offering practical tools for creating functional displays.
