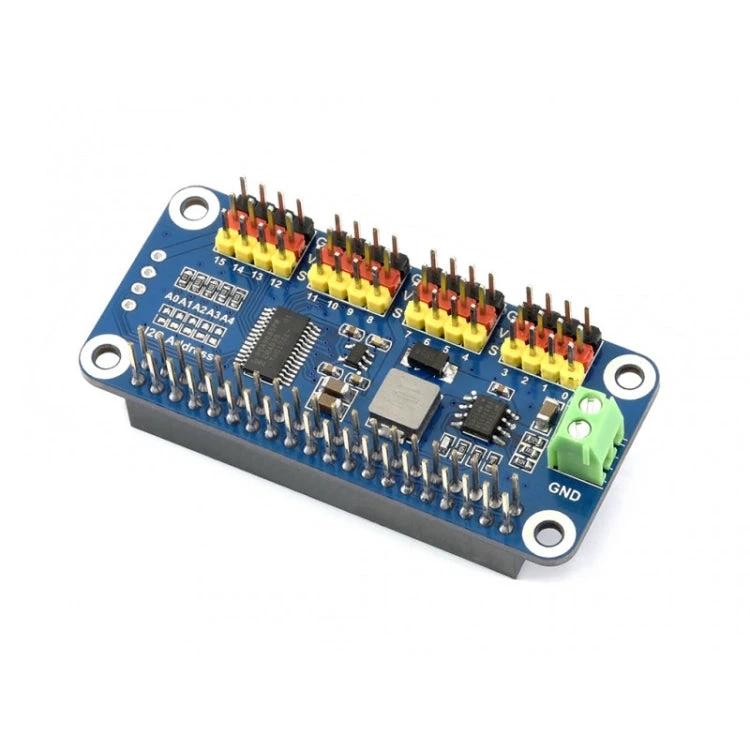

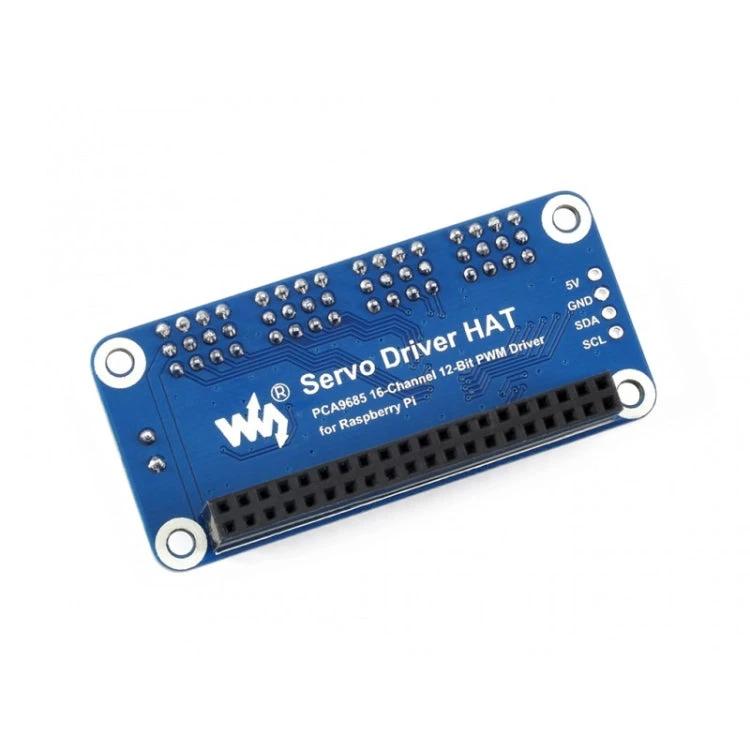

The Waveshare 16-Channel Servo Driver HAT is designed to enhance Raspberry Pi projects by providing reliable PWM outputs for servo control.
In robotics and automation setups, this HAT helps manage multiple servos smoothly, addressing issues like limited PWM pins on the Pi. For example, it's useful in building precise mechanisms such as robotic arms or automated devices, reducing jitter for more accurate movements.

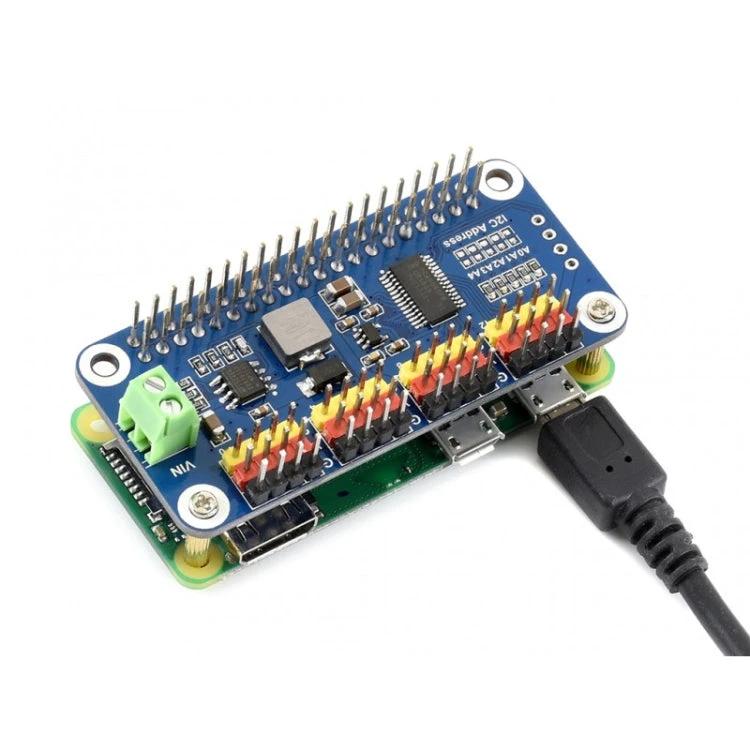

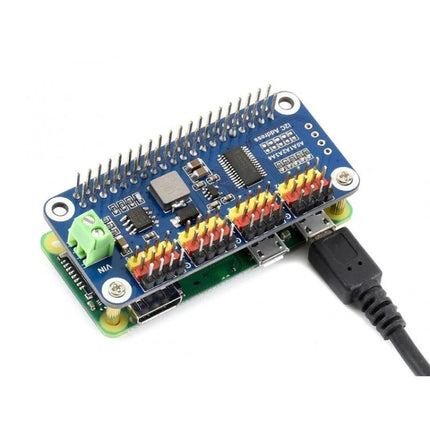

- I2C interface uses only 2 pins for easy integration with Raspberry Pi or Jetson Nano boards

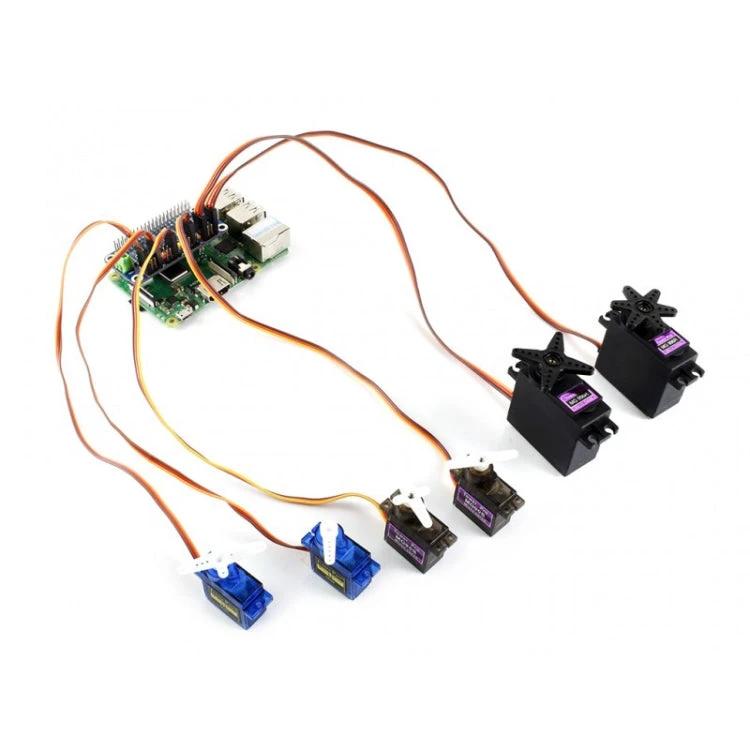

- Supports up to 16 channels with 12-bit resolution, allowing fine-tuned control for various servo types like SG90 or MG996R
- Built-in 5V regulator with up to 3A output, powered via VIN or Pi connector for flexible setups
- Standard servo connectors and reserved I2C pins for expanded compatibility
- Includes development resources like Python examples for remote control via Bluetooth or WiFi

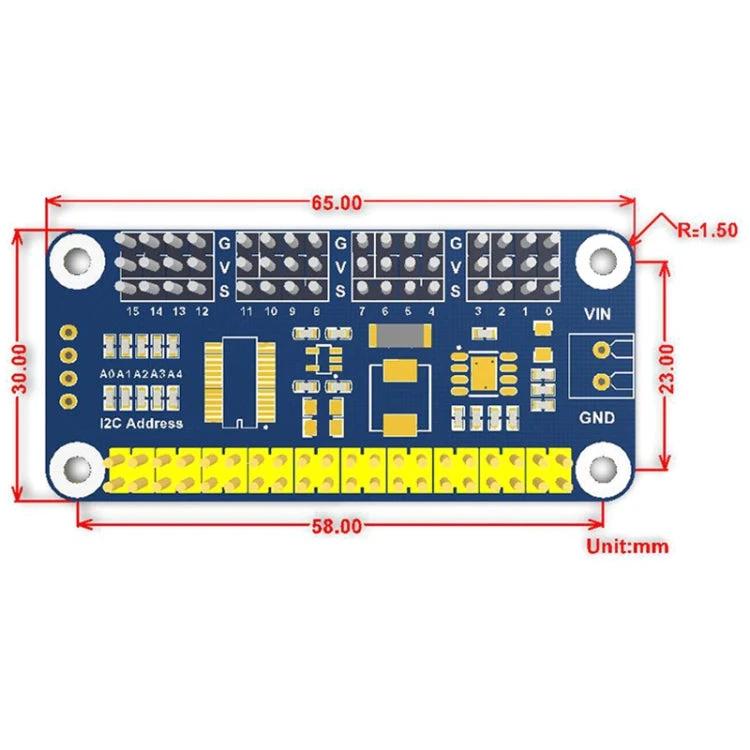

- Compact size of 65mm x 30mm, with mounting holes for secure installation
This HAT fits well for makers and engineers needing expanded PWM capabilities in Raspberry Pi-based projects, offering practical solutions for precise motor control without added complexity.
