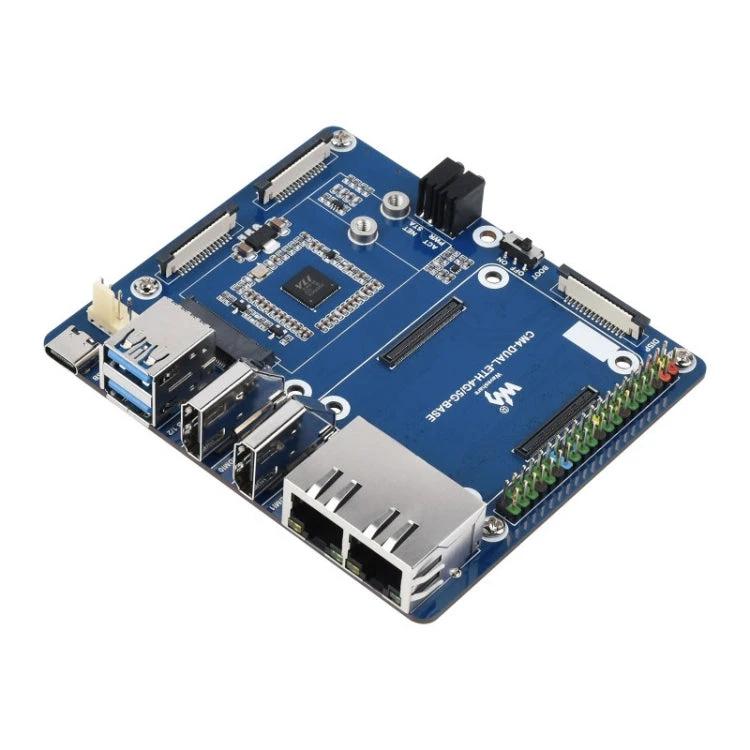

The Waveshare Base Board serves as a versatile expansion for the Raspberry Pi Compute Module 4, offering a range of interfaces to enhance connectivity and functionality for various projects.
For users building network-intensive setups, such as IoT devices or edge computing systems, this board provides reliable options for high-speed data transfer and cellular connectivity, making it suitable for applications requiring dual networking or remote access.

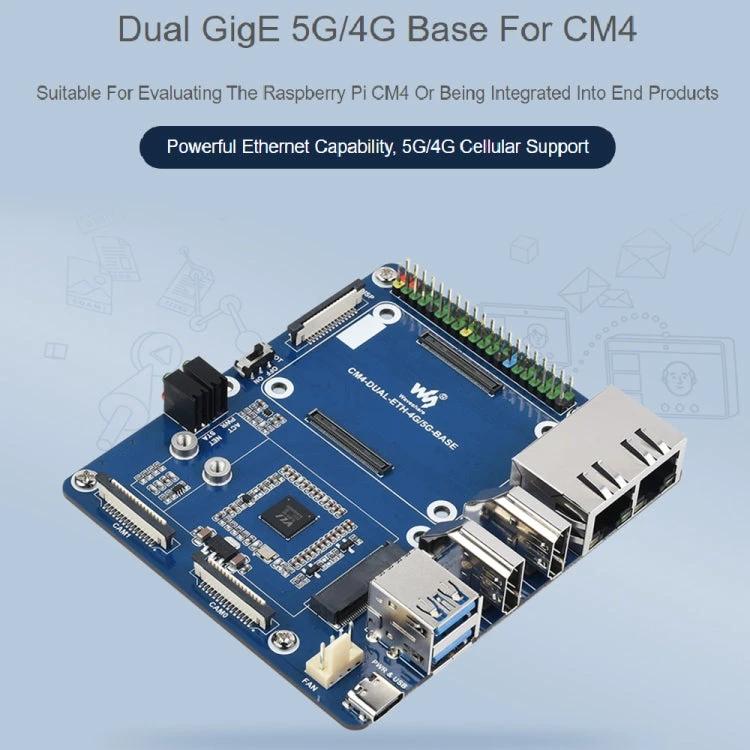

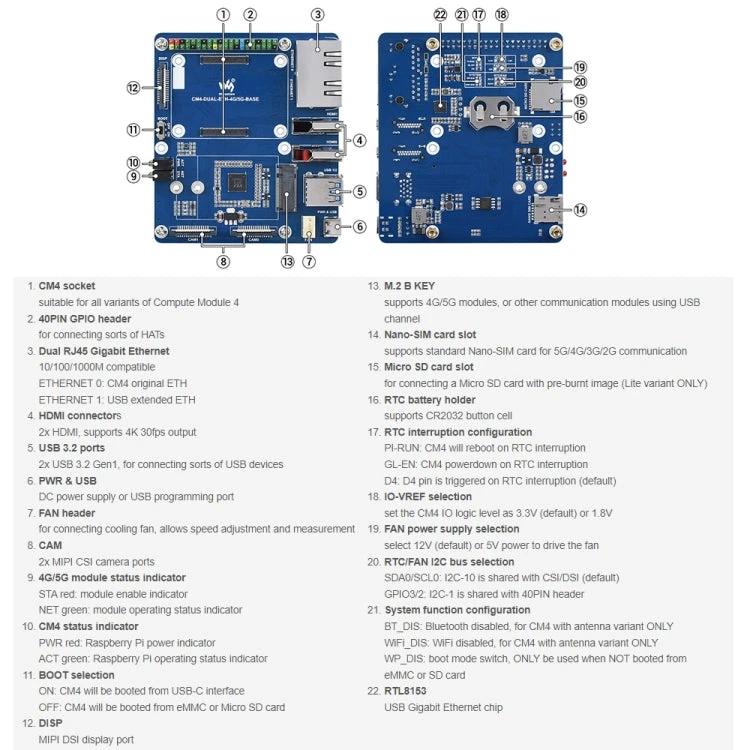

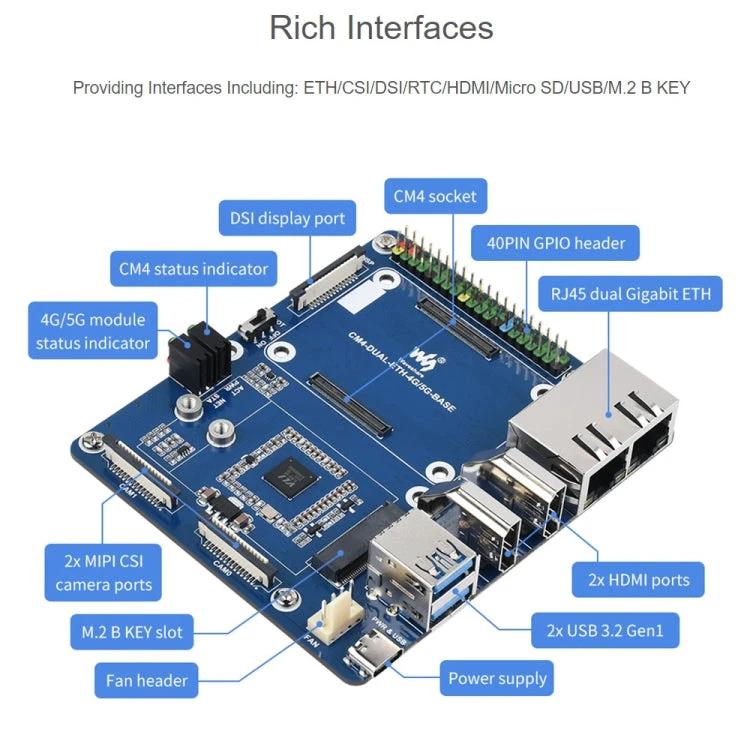

- Dual Gigabit Ethernet ports for robust wired connections
- M.2 slot and Nano-SIM card support for integrating 5G/4G modules

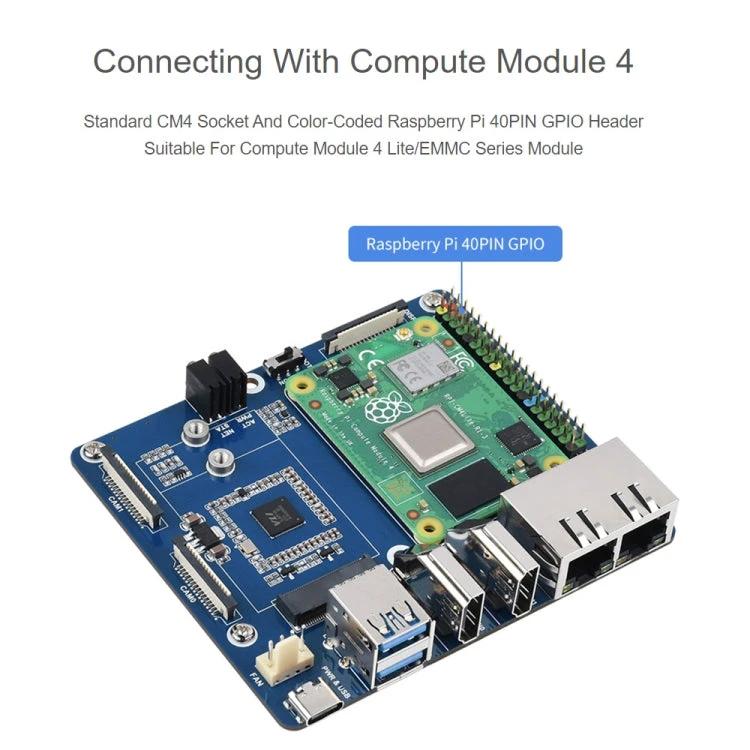

- Two USB 3.2 Gen1 ports and a 40PIN GPIO header for expanded I/O
- MIPI DSI display and dual MIPI CSI-2 camera ports for multimedia projects
- Dual HDMI outputs supporting up to 4K 30fps video

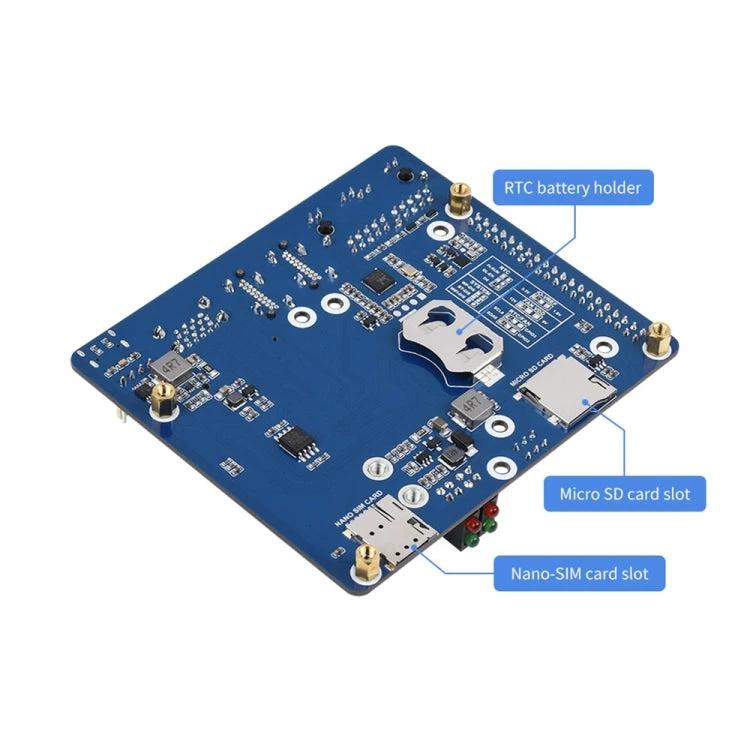

- Real-time clock with battery backup for accurate timing

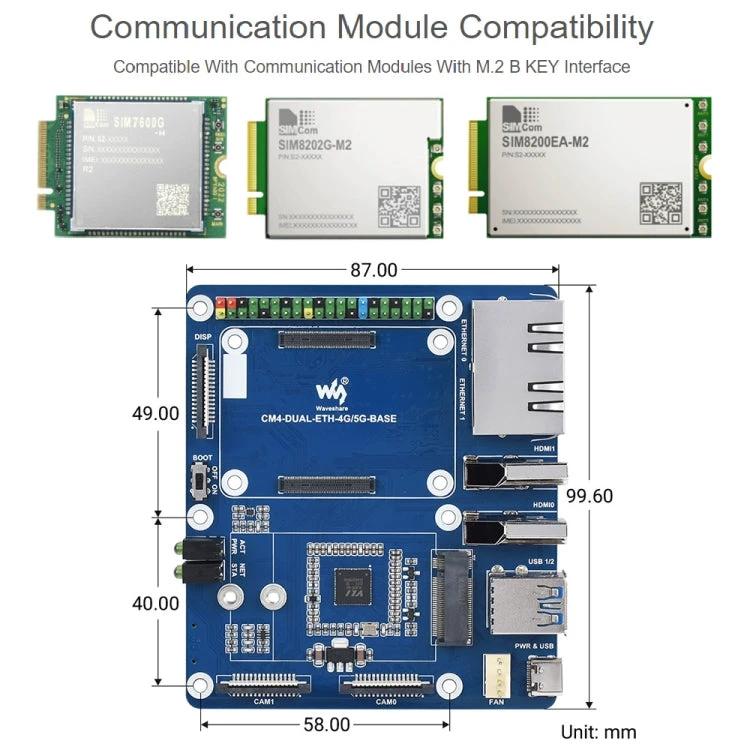

With dimensions of 99.6 x 87.0mm, it fits well into compact enclosures and works with all Raspberry Pi CM4 variants, ideal for developers seeking enhanced peripheral options without added complexity.
