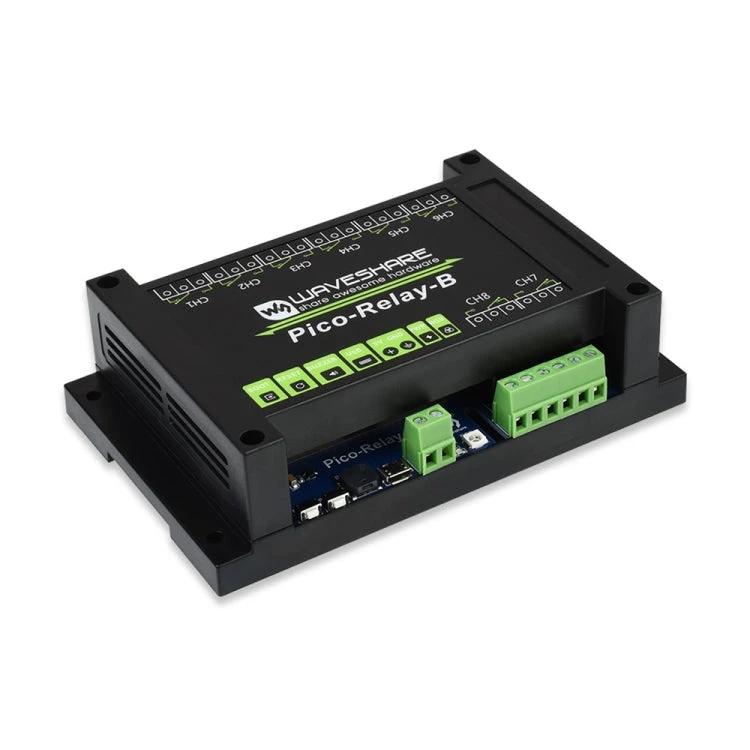

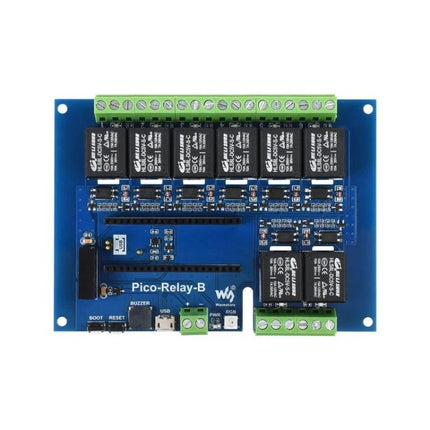

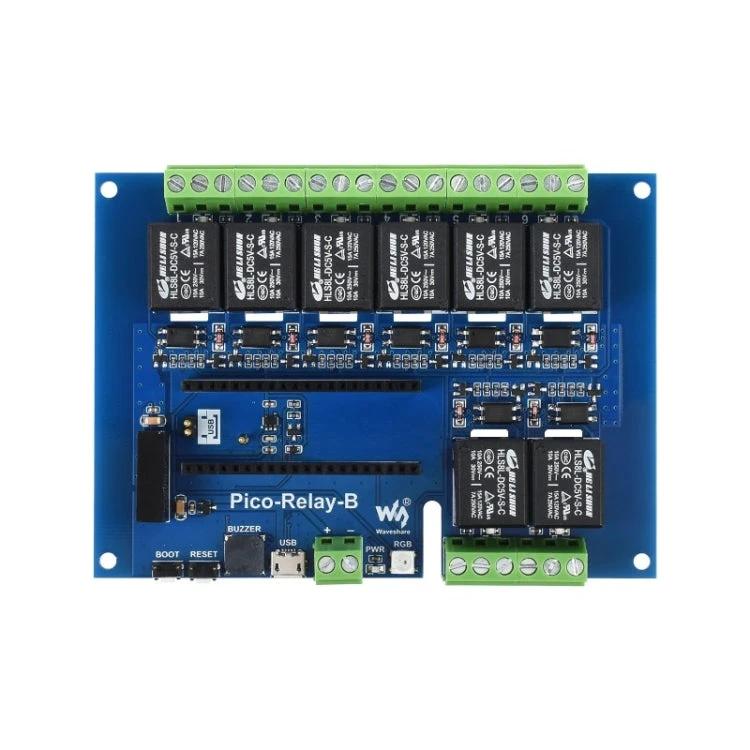

The Waveshare Eight Channel Relay Module is designed for Raspberry Pi projects, offering a reliable way to control multiple electrical devices through digital signals. This module integrates essential features for safe and efficient operation in various automation setups.
In a typical use case, such as building a smart home system, this relay module allows you to switch lights, motors, or sensors using your Raspberry Pi, providing electrical isolation to protect your setup from potential voltage spikes or interference.

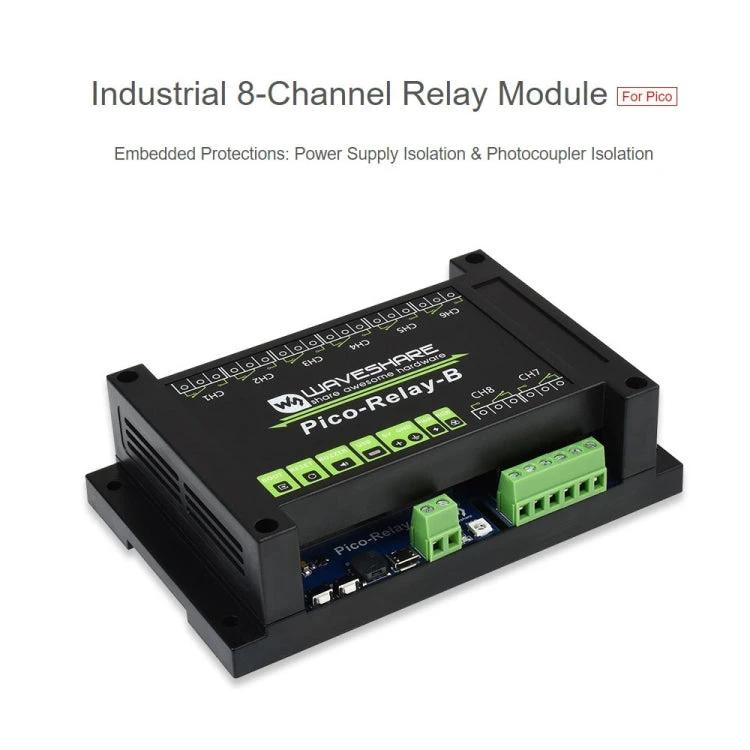

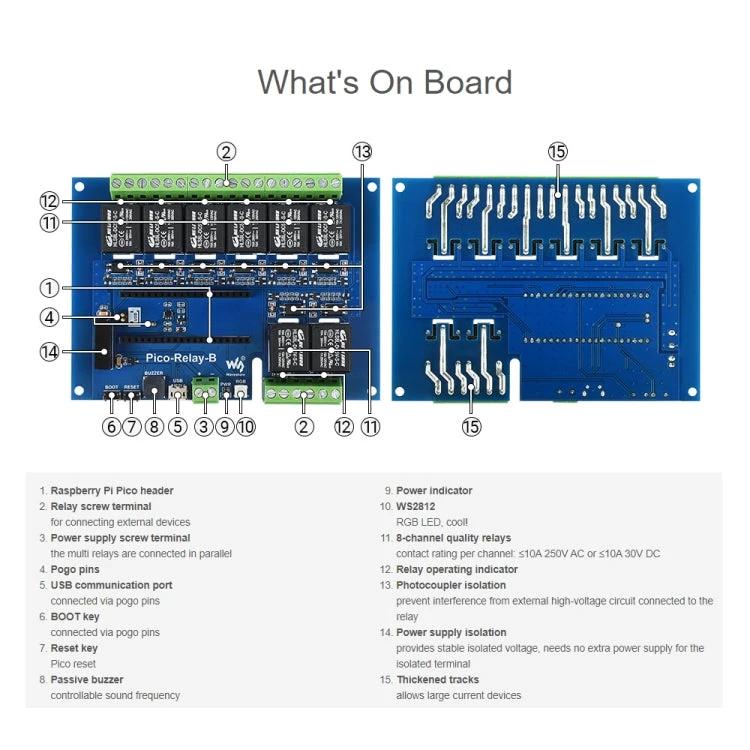

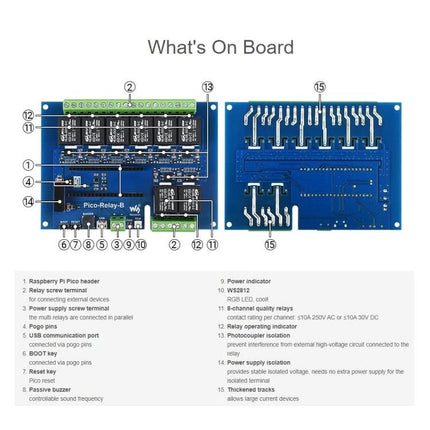

- Onboard power supply isolation for stable voltage without additional power needs
- Photocoupler isolation to shield against external high-voltage circuits
- High-quality relays rated for 10A at 250V AC or up to 10A at 30V DC

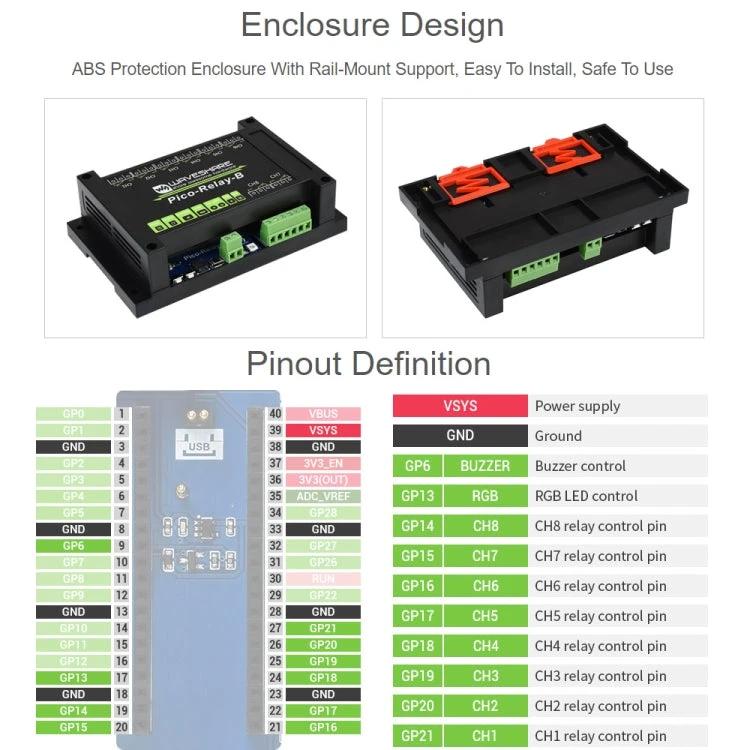

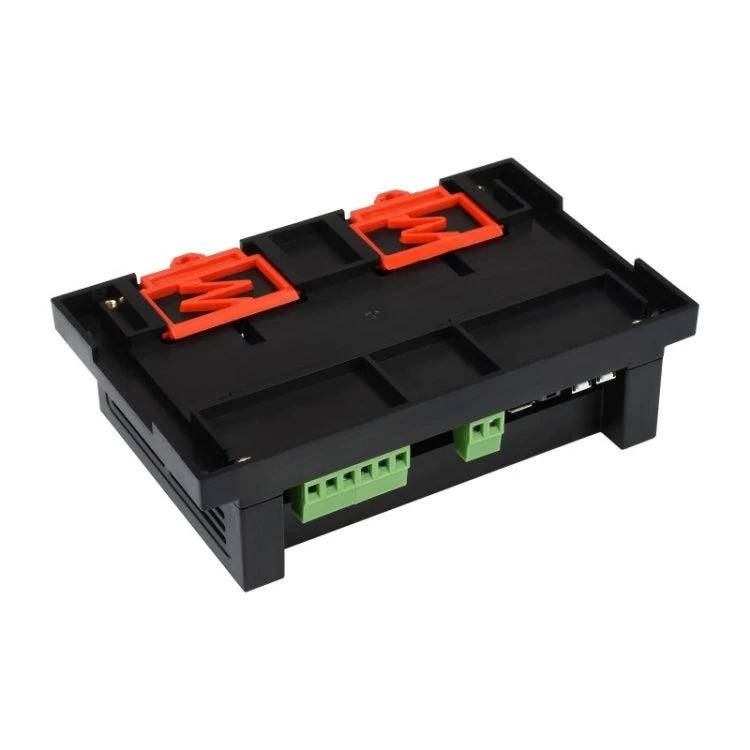

- ABS protective enclosure with rail-mount for easy and secure installation
- Breakout USB port and BOOT pin for straightforward debugging
- Includes PWR indicator, RGB LED, and passive buzzer for status feedback
Light specifications include 5V operation, 8 channels via USB, and Micro USB interface. This module fits well for hobbyists and engineers working on IoT or automation projects, ensuring compatibility with Raspberry Pi Pico through provided examples.
