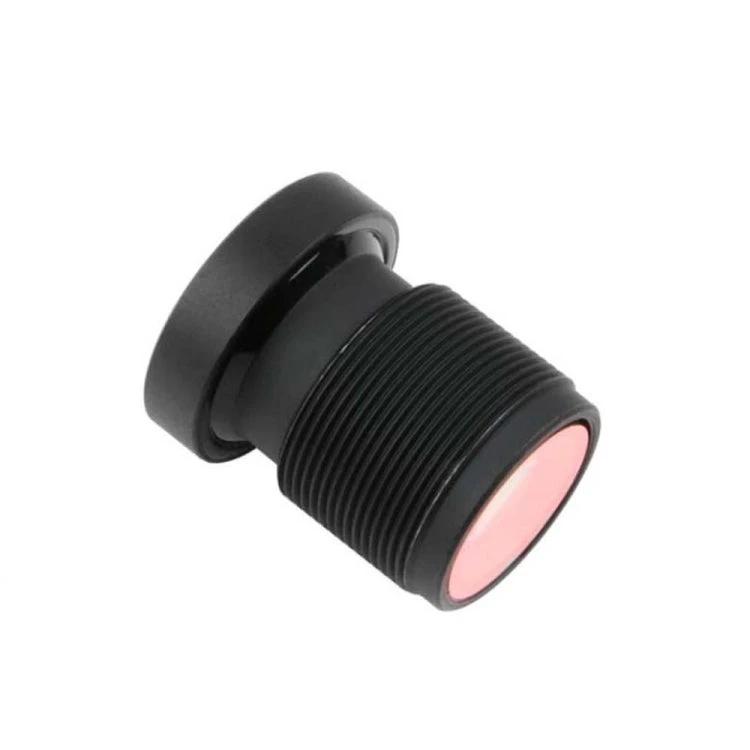

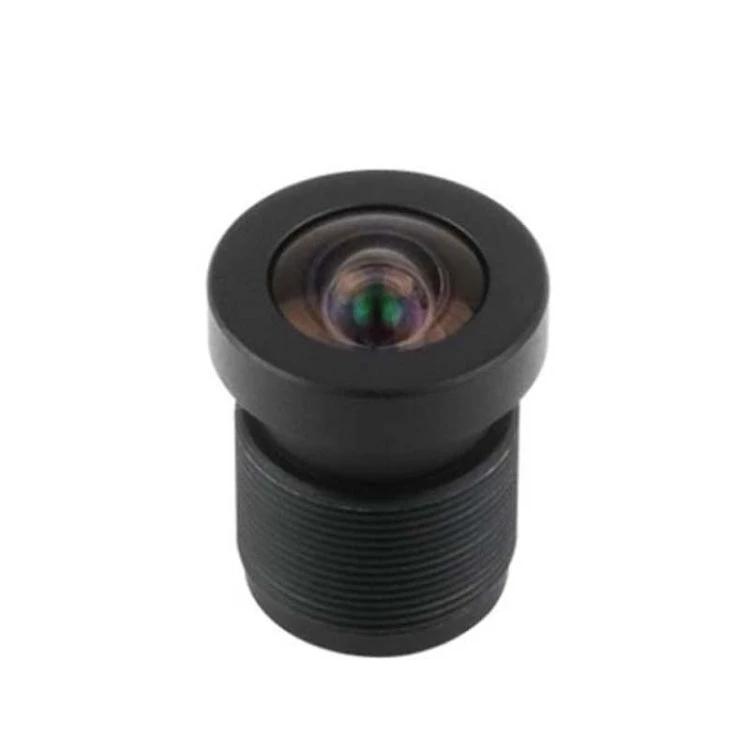

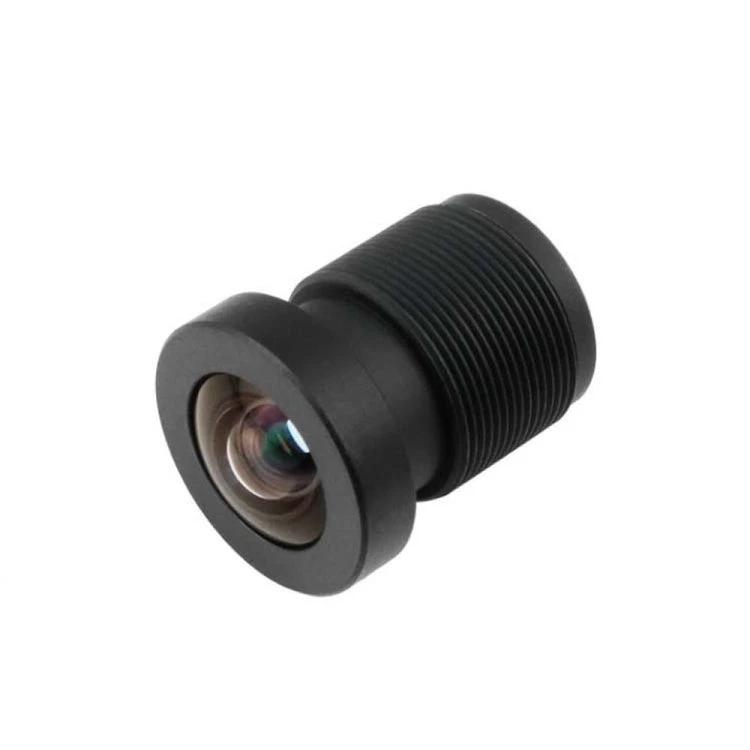

The Waveshare 16MP lens enhances Raspberry Pi imaging projects by providing a high-resolution option for M12 camera modules. It features a compact design suitable for various DIY electronics and photography setups.
This lens works well for applications like surveillance systems, robotics vision, or outdoor monitoring with Raspberry Pi boards. It delivers clear images in a wide field of view, helping users capture detailed scenes without excessive distortion.
- 16-megapixel resolution for sharp, detailed photography
- 3.56mm focal length and F/2.5 aperture for low-light performance

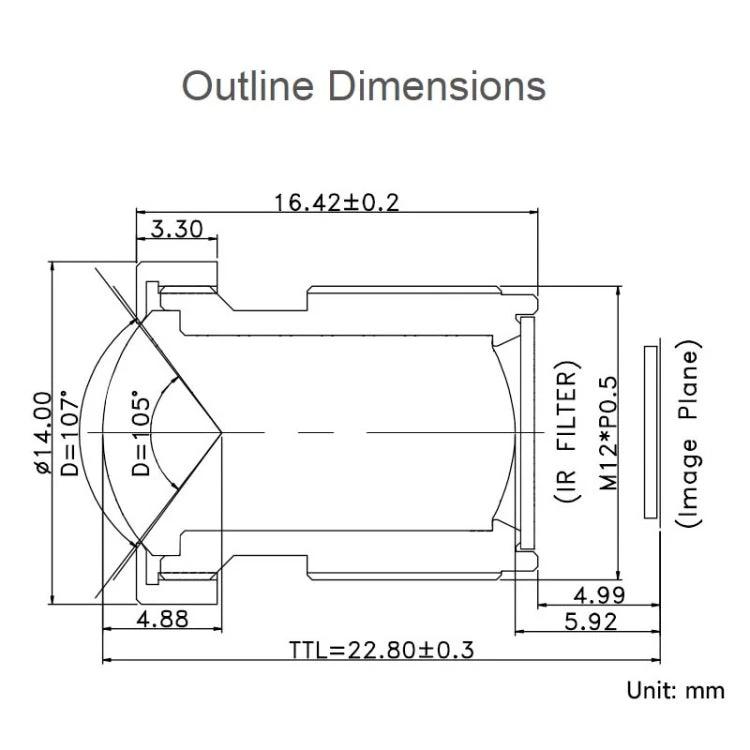

- Wide field of view: 105° diagonal, 88° horizontal, 70° vertical on a 1/2.3-inch image format
- Operates in a broad temperature range from -30 to 70 degrees Celsius
- Lightweight at 7g with M12 x P0.5 mounting for easy integration
- Distortion less than -17.6% to maintain image accuracy

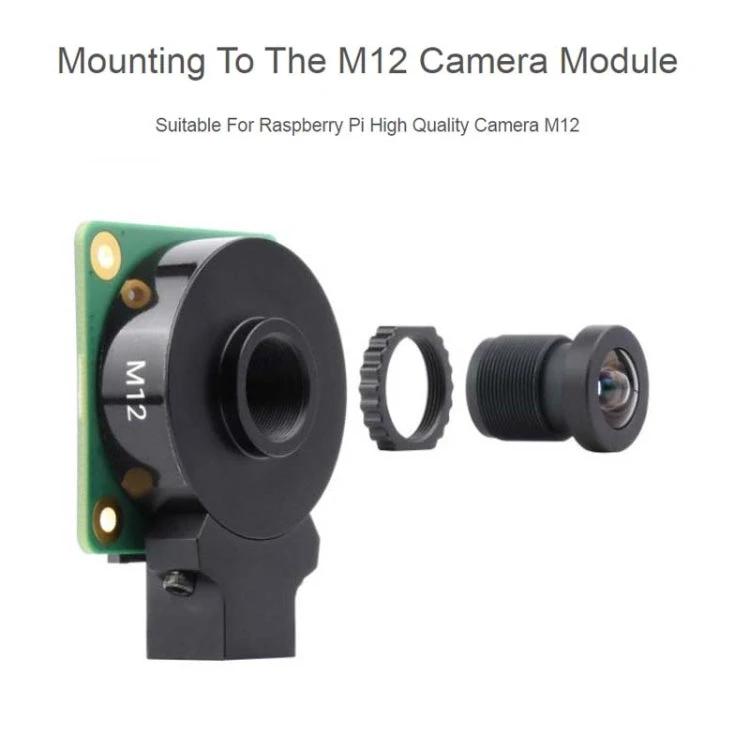

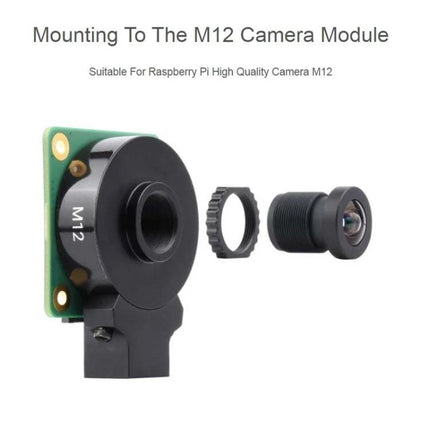

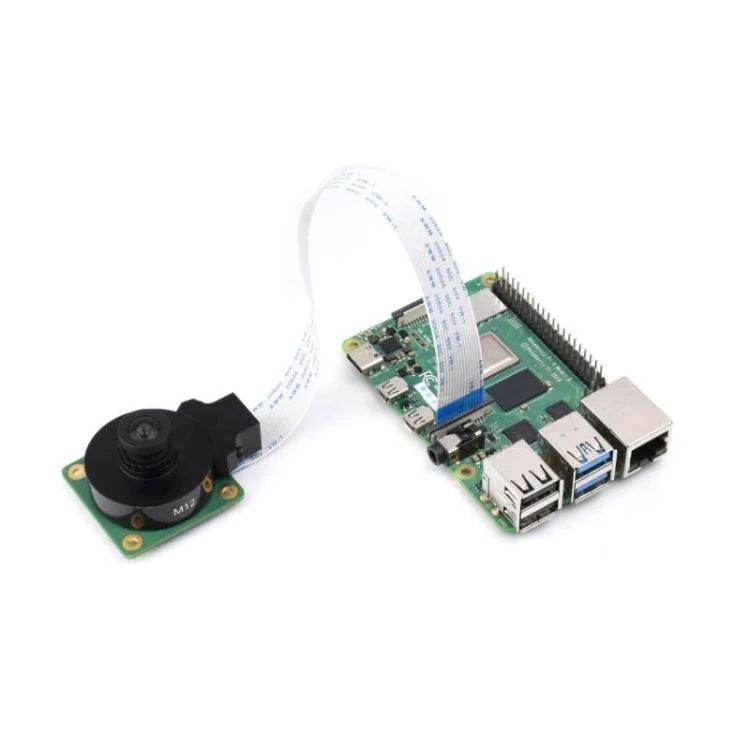

This lens fits Raspberry Pi camera modules, though an additional cable may be required for compatibility with Raspberry Pi Zero or Zero 2W models.
