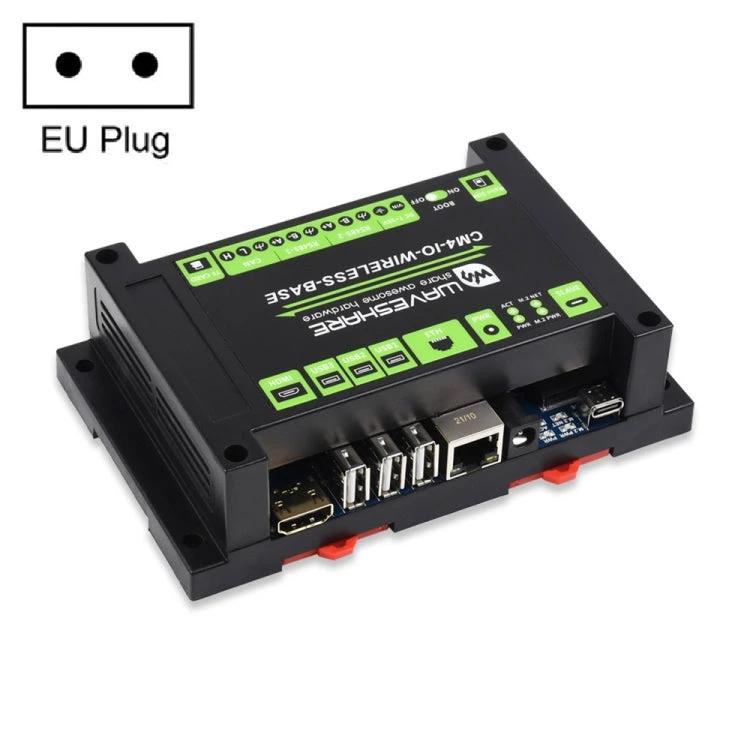

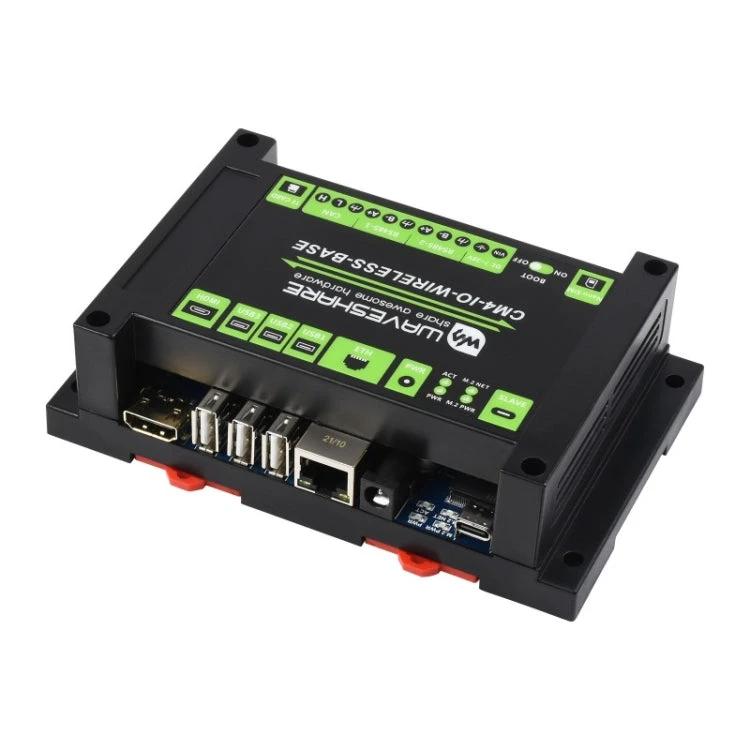

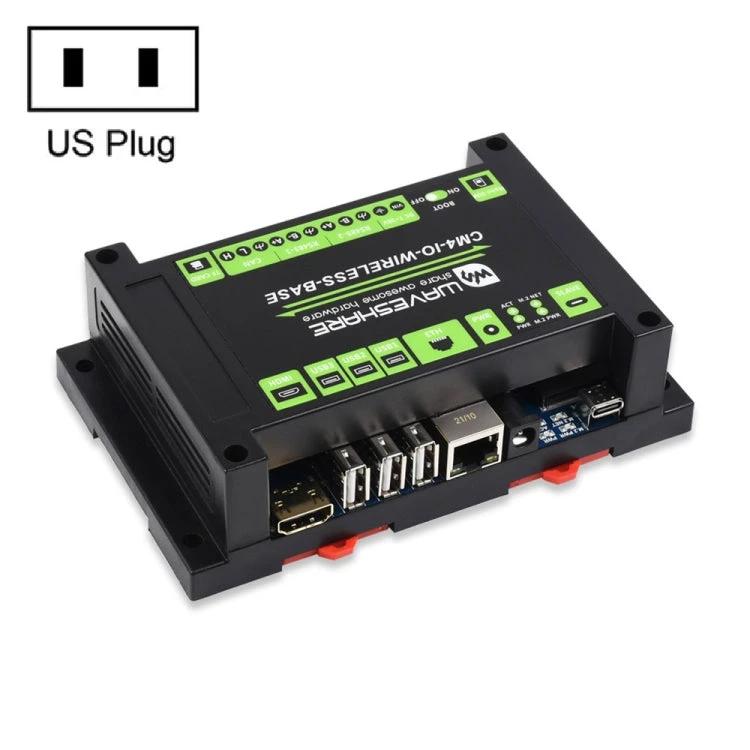

The Waveshare Industrial IoT Wireless Module is an expansion board designed for Raspberry Pi Compute Module 4 (CM4), offering essential interfaces for industrial applications.
This module suits scenarios like building IoT gateways, 4G/5G routers, or data acquisition systems in industrial environments. For instance, it enables seamless wireless communication and data handling in automation setups, connecting to various modules via M.2 or Mini-PCIe sockets for reliable performance in remote or demanding conditions.

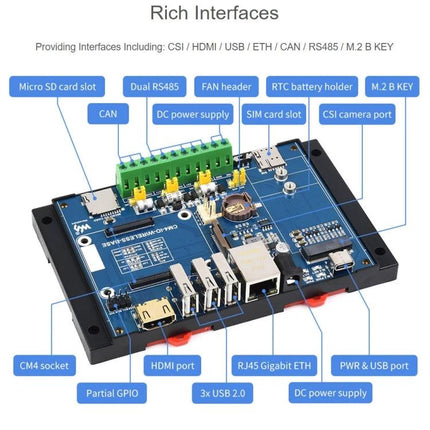

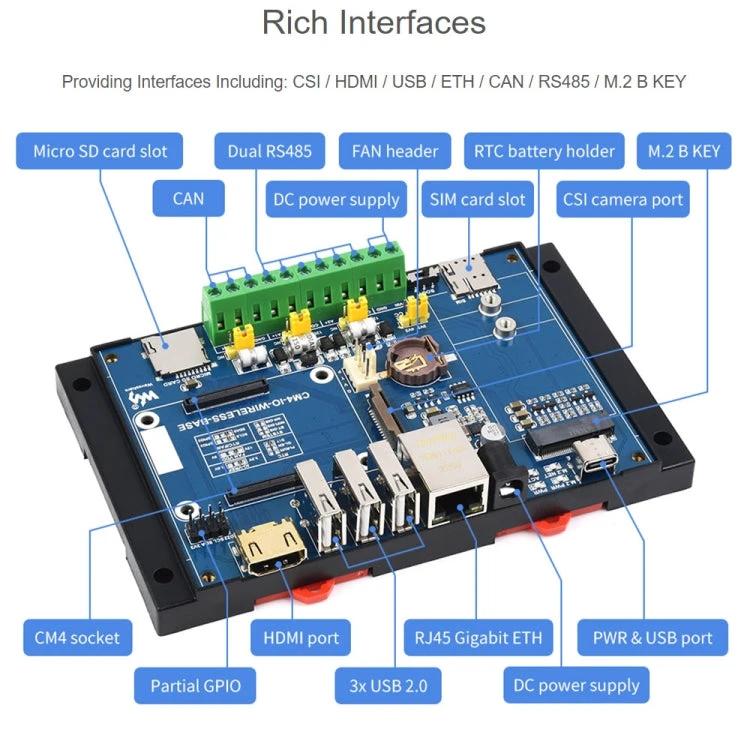

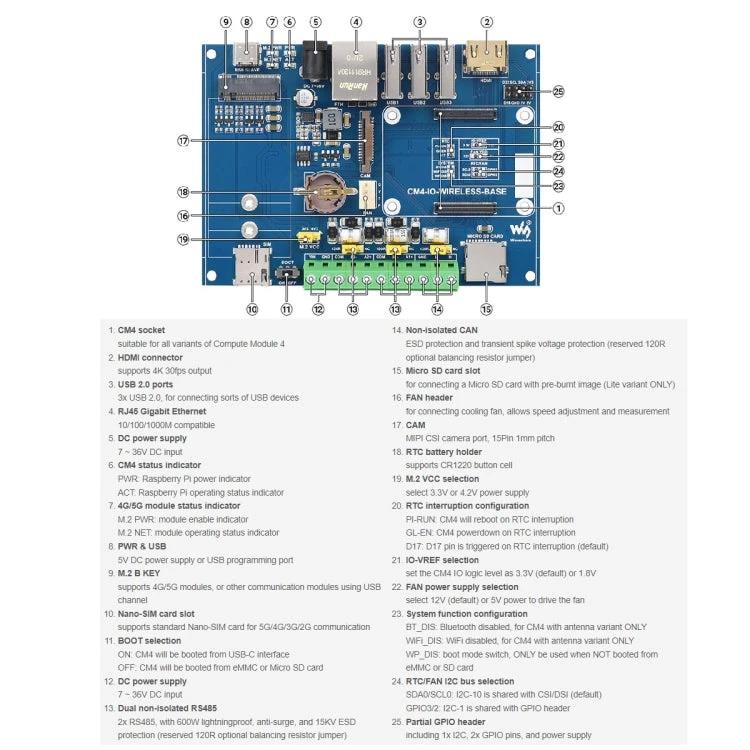

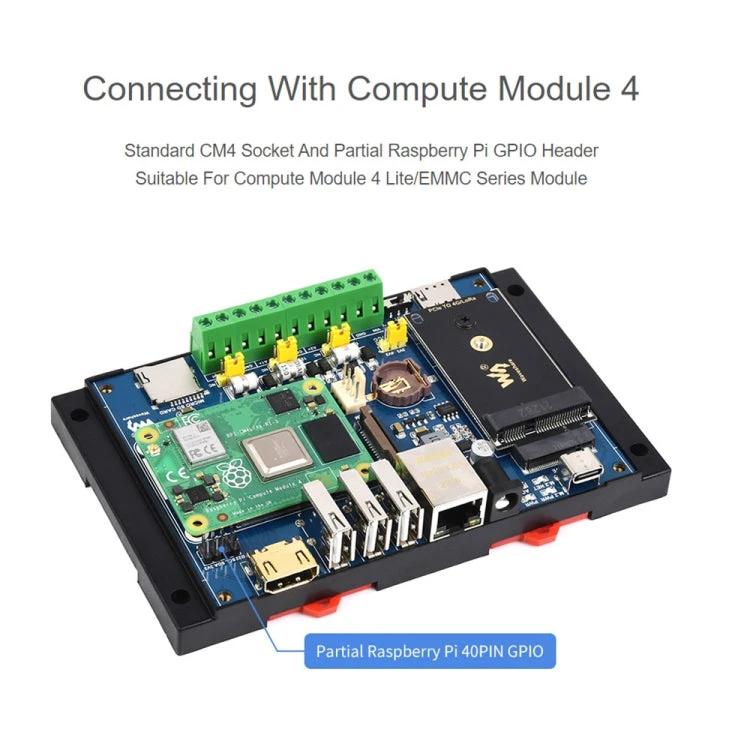

- Supports all CM4 variants with Gigabit Ethernet, HDMI, and USB 2.0 ports for versatile connectivity.

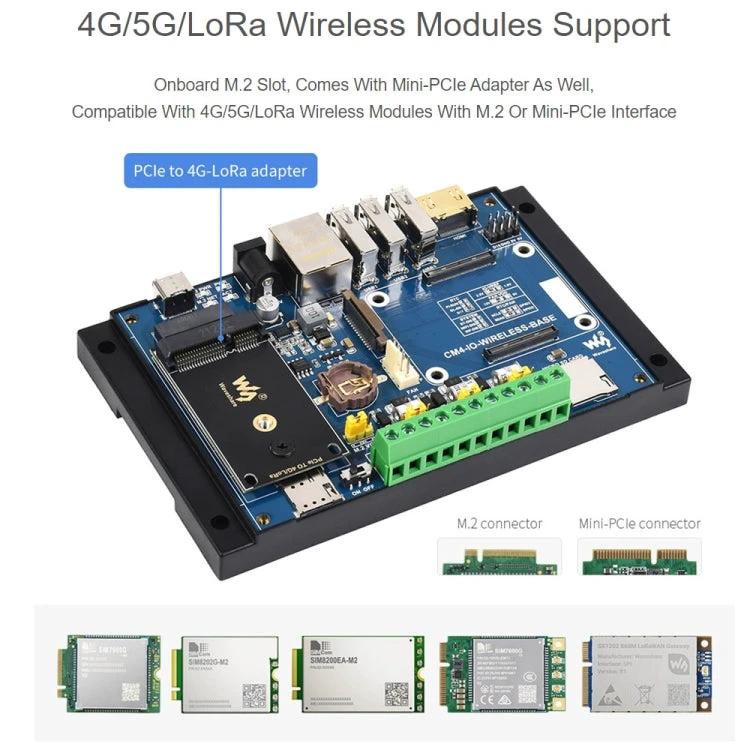

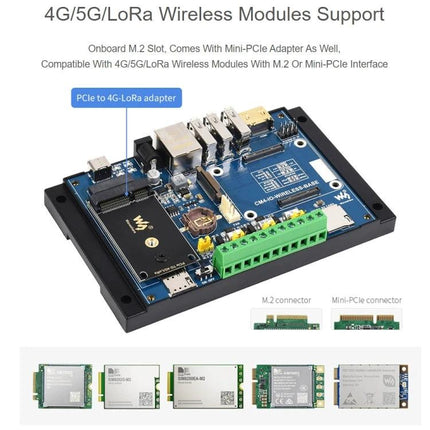

- Includes M.2 B KEY and Mini-PCIe slots for adding 4G/5G/LoRa modules, plus a Nano-SIM slot.
- Features industrial interfaces like RS485 (x2), CAN (x1), and RTC with battery backup.
- Provides GPIO pins, MIPI CSI-2 camera connector, and a MicroSD slot for storage.

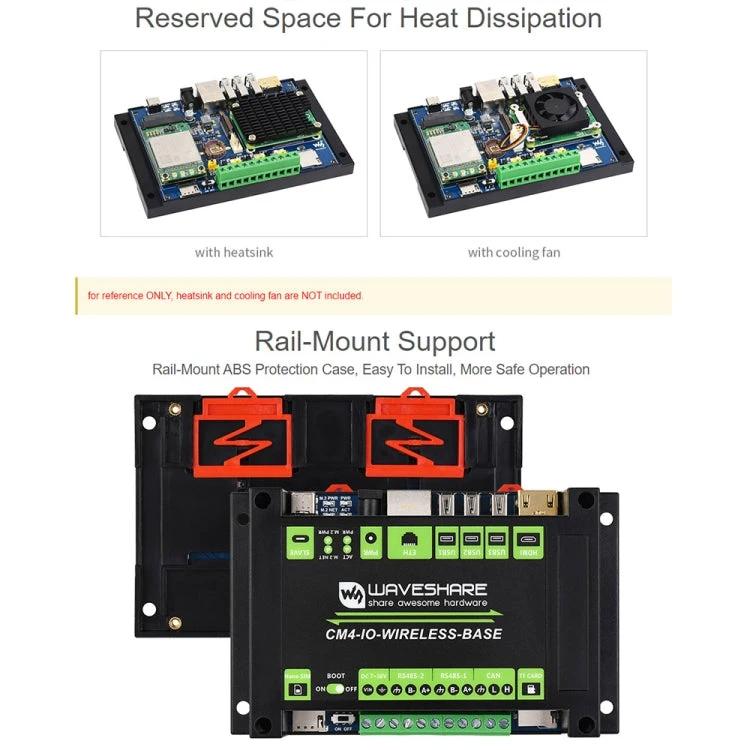

- Offers flexible power input (5V or 7-36V) and a fan header for thermal management.

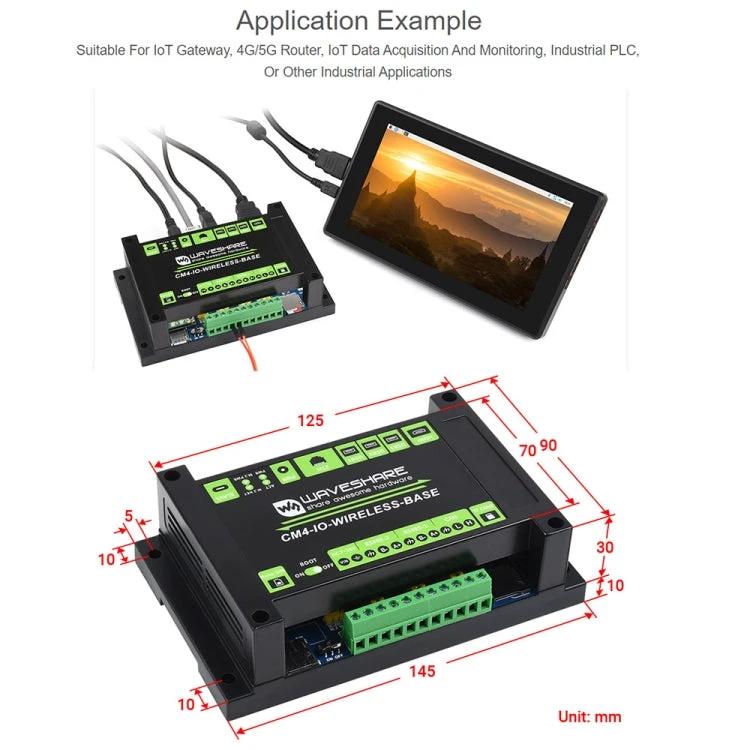

- Compact dimensions of 145 x 90 x 40mm for easy integration into existing systems.
This module fits well for developers and engineers working on industrial IoT projects, providing the necessary tools for efficient, expandable setups without unnecessary complexity.
