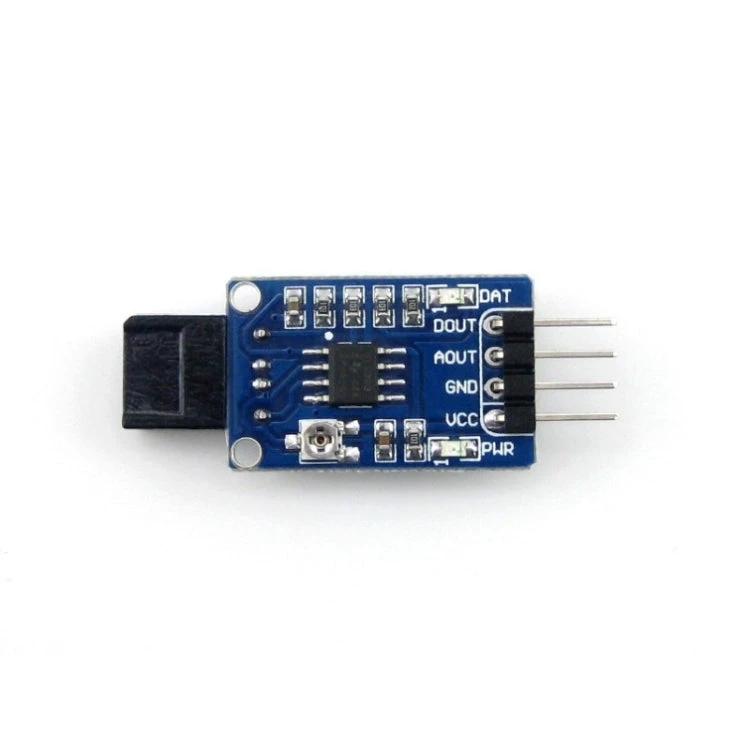

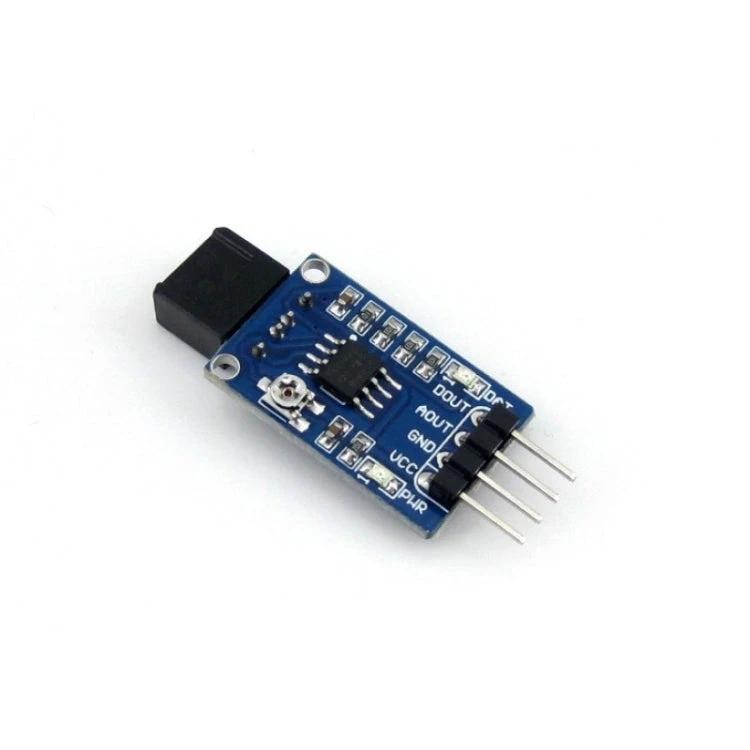

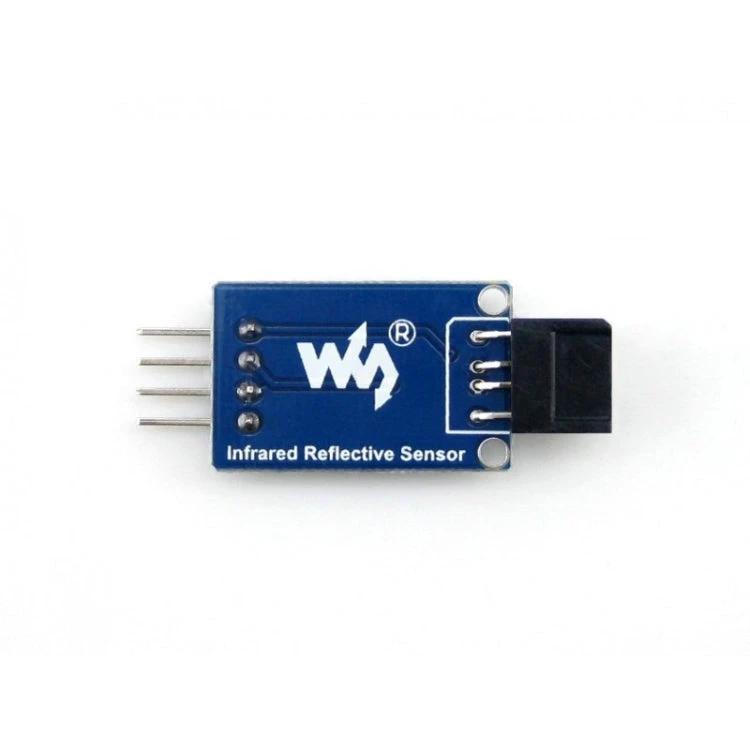

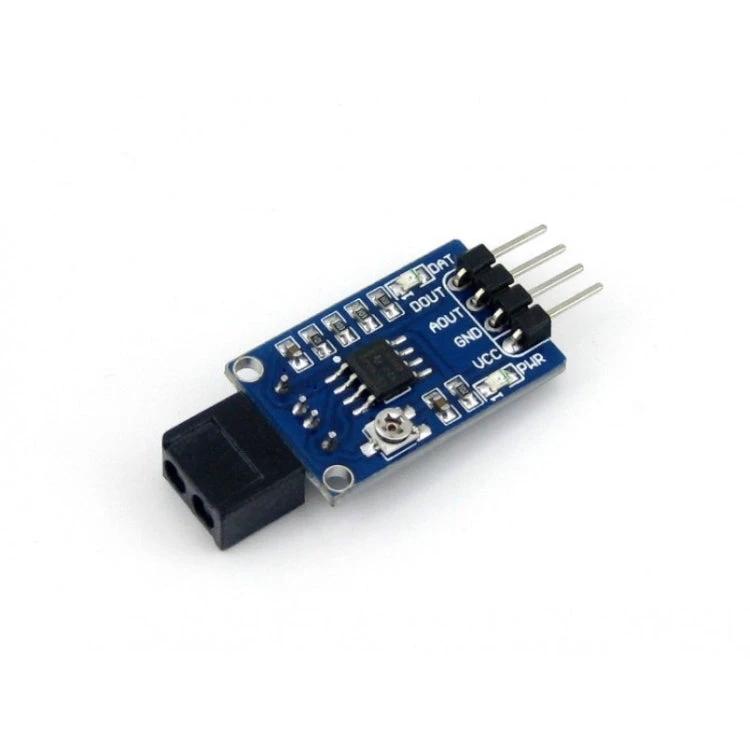

The Waveshare Infrared Sensor serves as a reliable reflective transceiver for robot navigation and path tracking tasks.
In practical use, this sensor helps detect lines or obstacles in DIY robotics projects, such as guiding an autonomous car around barriers or counting items in a pipeline setup. It integrates easily with microcontrollers for accurate signal processing.
- Reflective infrared design with adjustable sensitivity to fine-tune detection ranges
- Features the LM393 voltage comparator for stable analog and digital outputs
- Compact dimensions of 25mm x 15.9mm with 2.0mm mounting holes for easy installation
- Operates on a 3.0V to 5.3V power supply, suitable for battery-powered devices

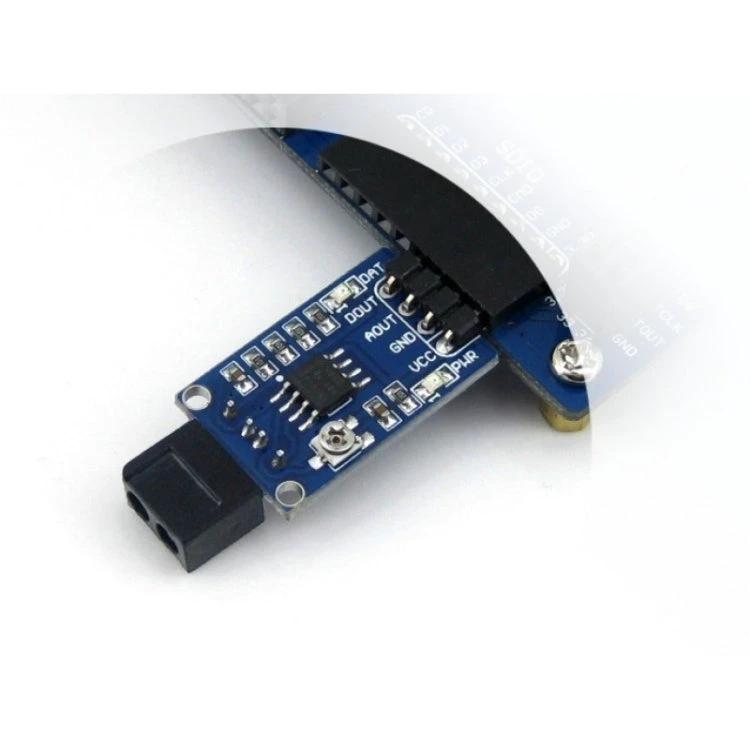

- Includes a 4-pin custom connector jumper wire for straightforward wiring
- Signal output indicator for visual feedback during testing
This sensor fits well in educational robotics, hobbyist builds, or simple automation systems where precise environmental detection is needed.
