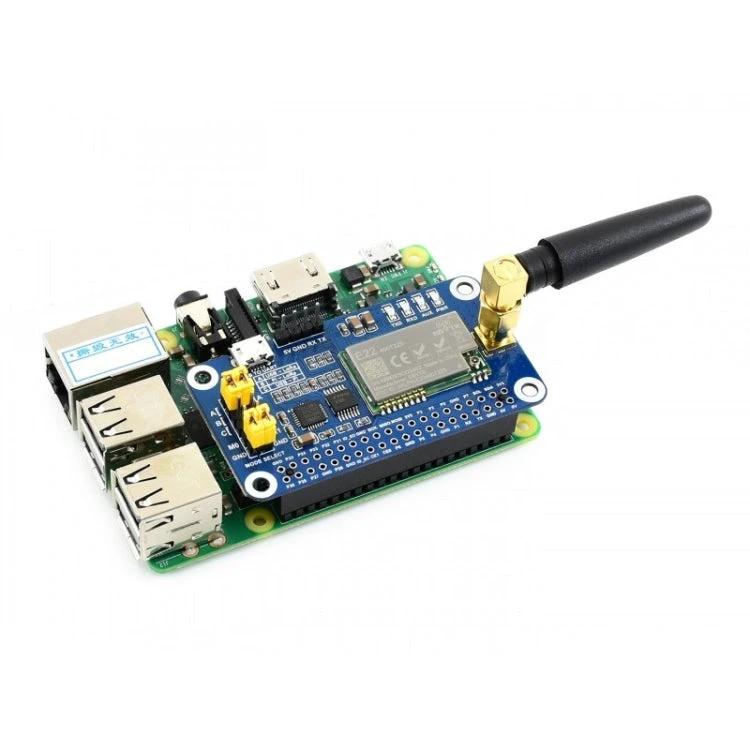

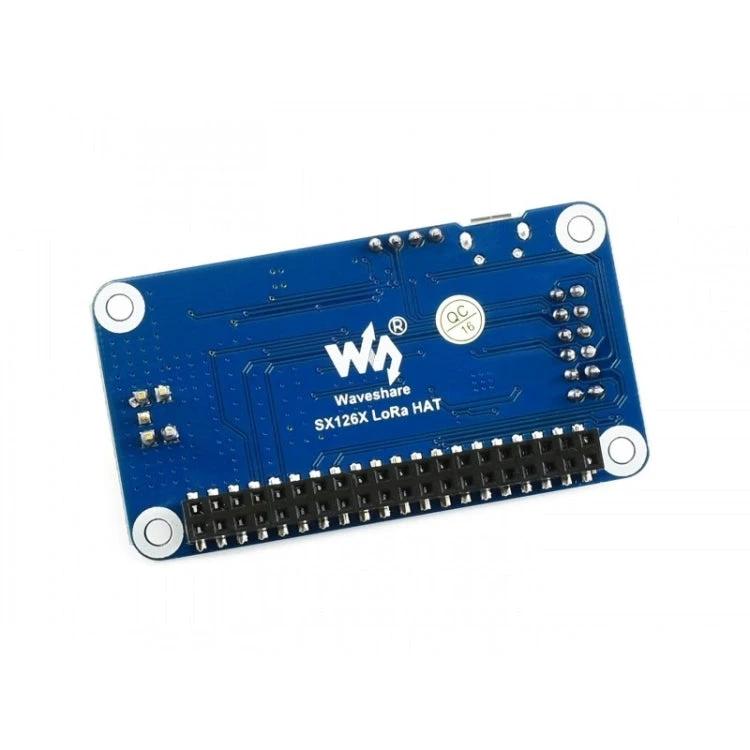

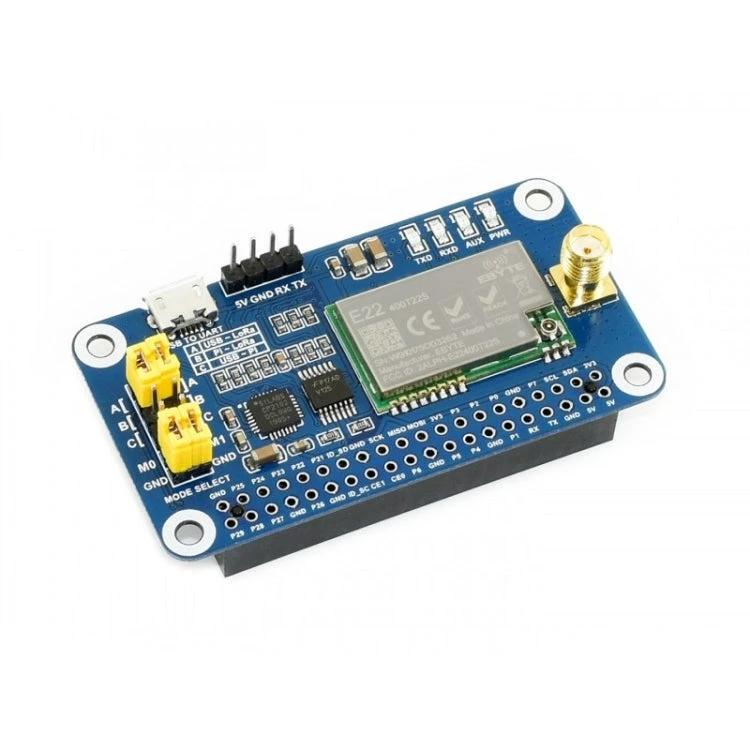

The Waveshare LoRa HAT is a compact add-on for Raspberry Pi boards, utilizing the SX1268 module to support 433MHz frequency for long-range wireless communication.
This HAT is useful for projects involving remote data transmission, such as monitoring sensors in industrial environments or setting up smart home networks, where reliable coverage up to 5km is needed without complex wiring.
- Based on SX1268 for extended range and interference resistance
- Features USB-to-UART converter for easy debugging
- Includes LED indicators for status monitoring
- Supports Wake on Radio and low-power modes for battery-operated devices
- Offers customizable communication keys for enhanced data security
- Compatible with Raspberry Pi, Arduino, and STM32 via UART interface
- Allows auto-repeating for improved signal in challenging terrains
Basic specs include a frequency band of 410.125 to 493.125MHz and transmit power up to 22dBm. It fits well in IoT applications where efficient, long-distance communication is essential for developers and engineers.
