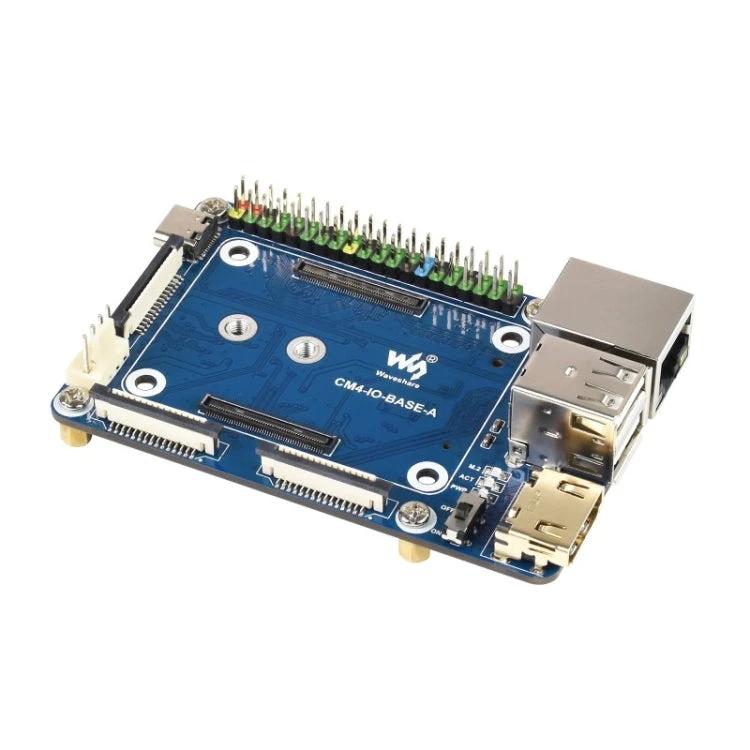

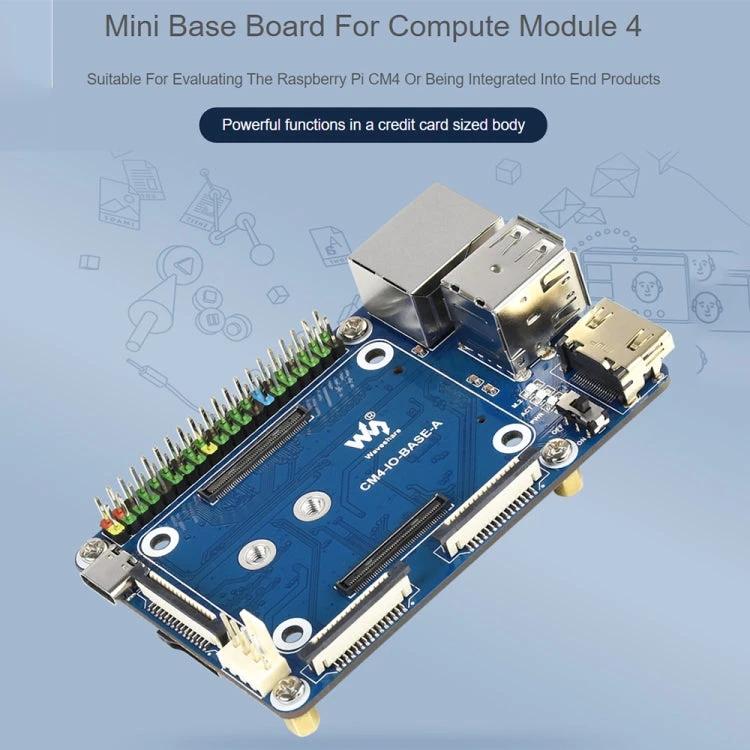

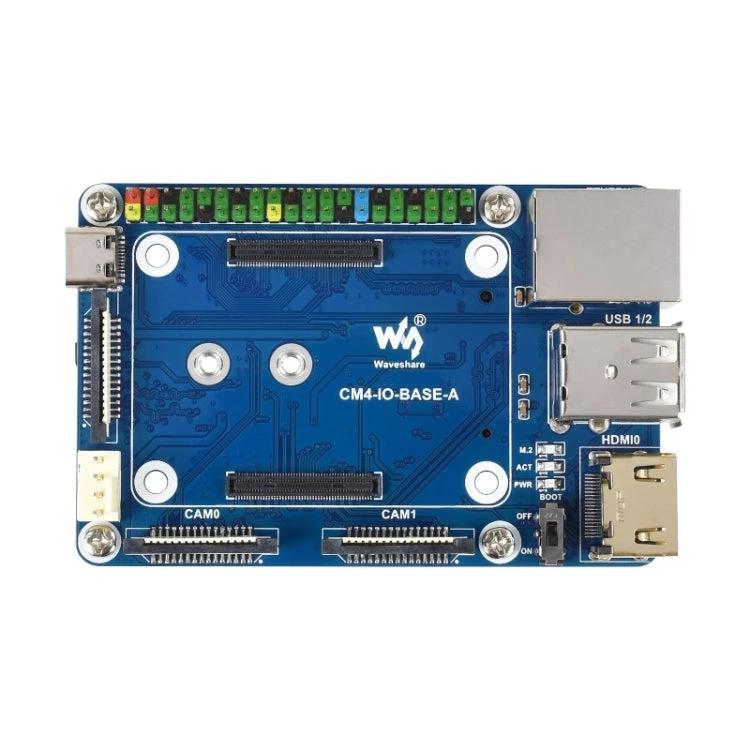

The Waveshare Mini Base Board serves as a compact expansion board for Raspberry Pi Compute Module 4 (CM4) projects, providing essential interfaces for enhanced functionality.
For makers and developers working on embedded systems, this board offers a practical way to integrate peripherals, such as displays and cameras, into custom Raspberry Pi setups. It's particularly useful for prototyping IoT devices or media applications where multiple connections are needed without adding bulk.

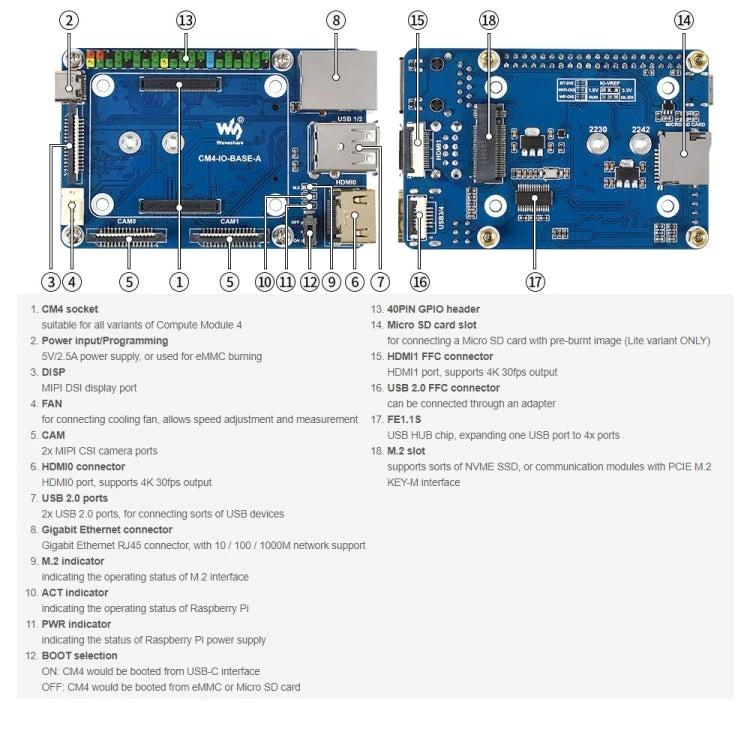

- Two USB 2.0 ports and two additional via FFC connector for versatile device connectivity

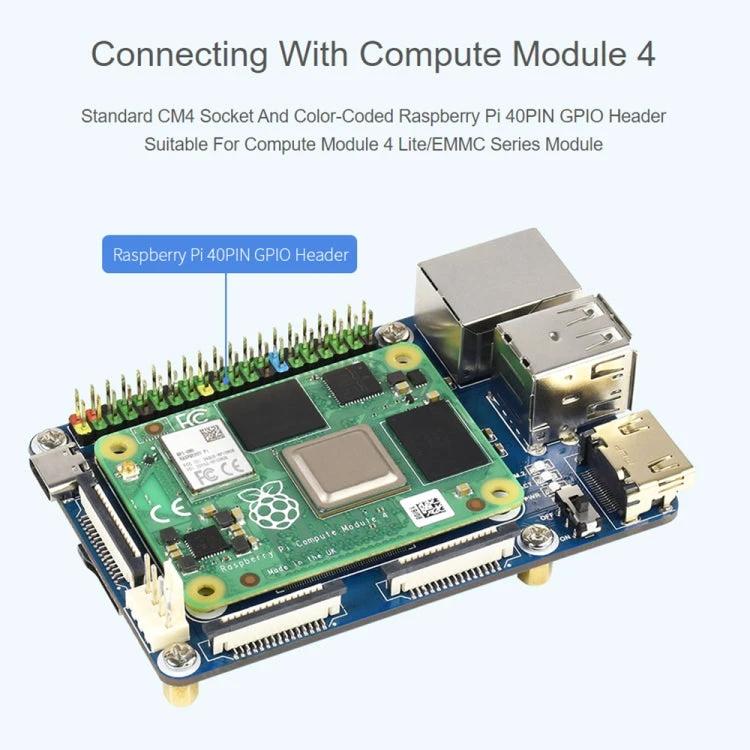

- Support for Raspberry Pi 40 PIN GPIO, enabling easy integration with sensors and actuators

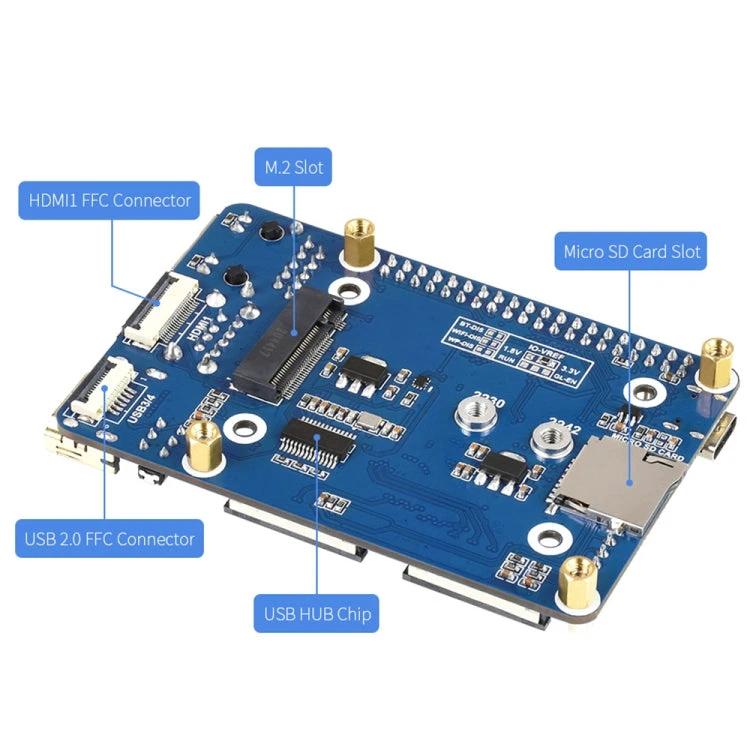

- Single M.2 slot for adding storage or wireless modules
- Two HDMI outputs, one via FFC, with 4K 30fps capability for high-resolution displays

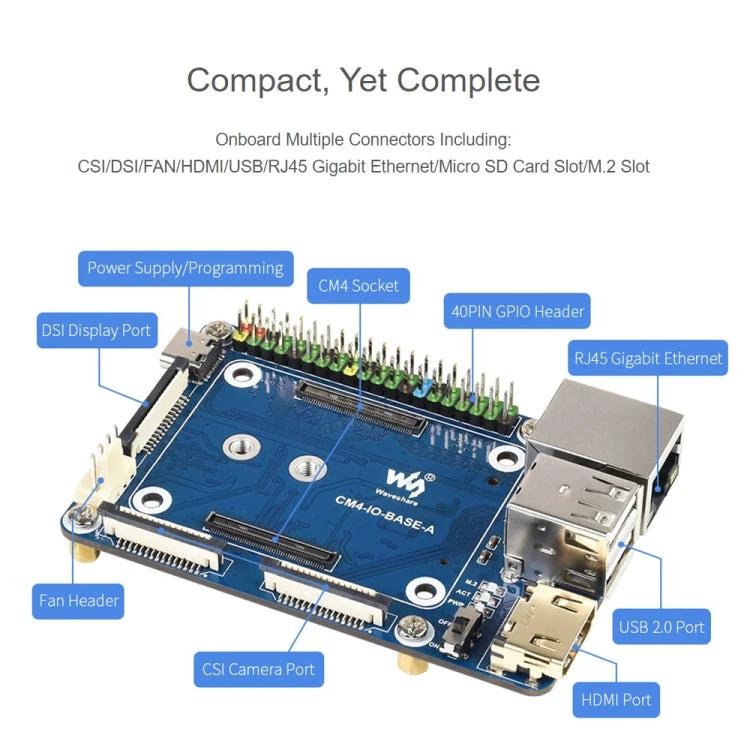

- MIPI DSI and CSI interfaces for direct connection to screens and cameras
- Gigabit Ethernet for reliable network access

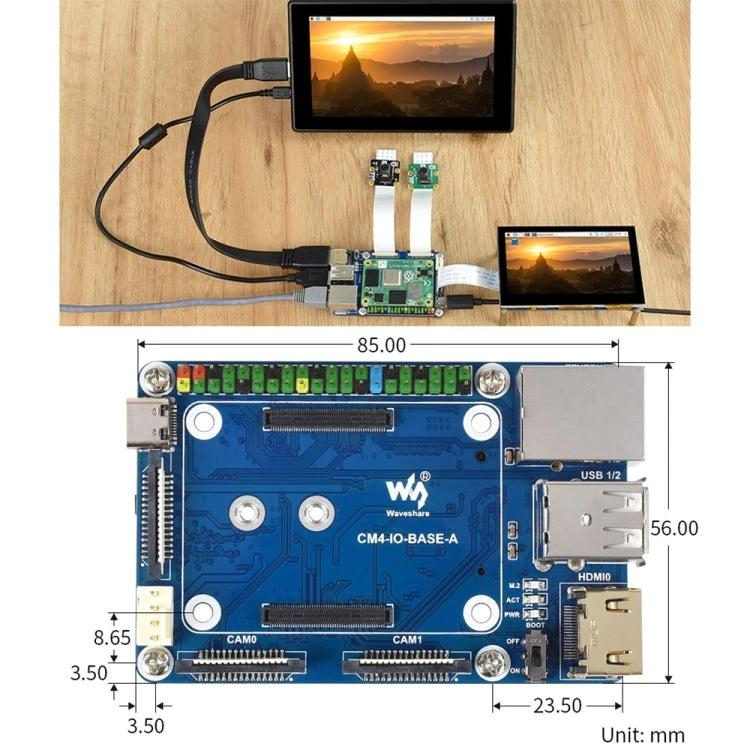

- Compact size of 85.0 x 56.0mm, fitting into space-limited enclosures

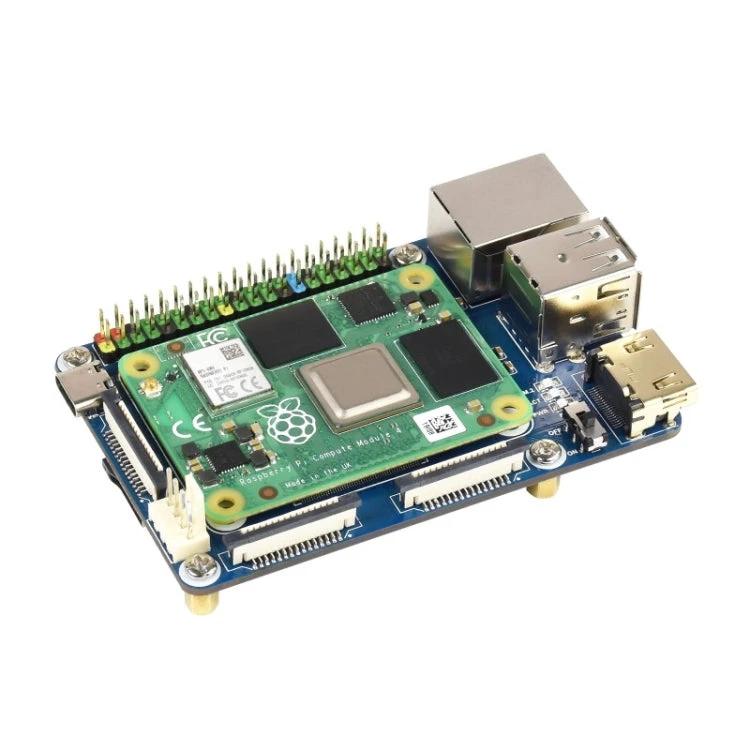

This board is well-suited for users familiar with Raspberry Pi ecosystems, offering compatibility with all CM4 variants to streamline project development.
