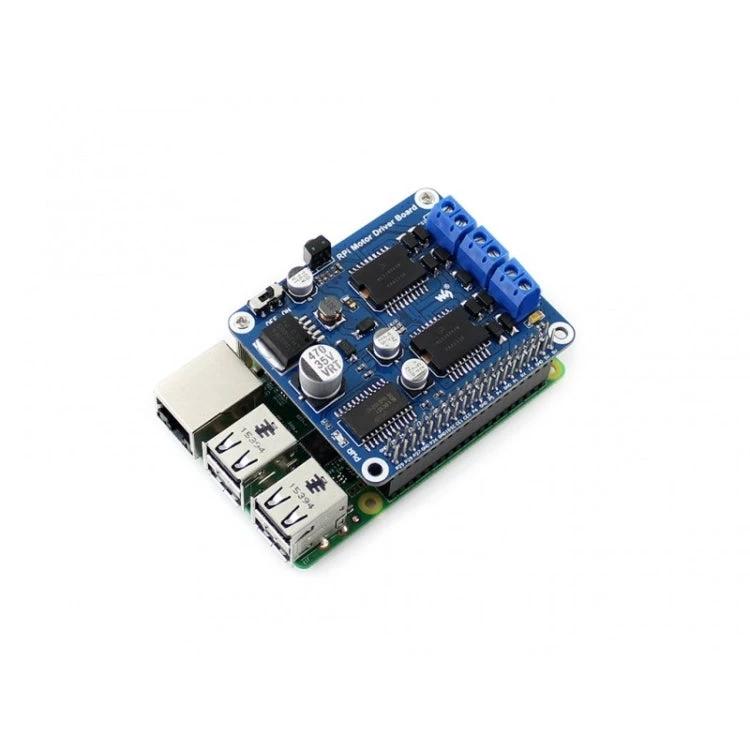

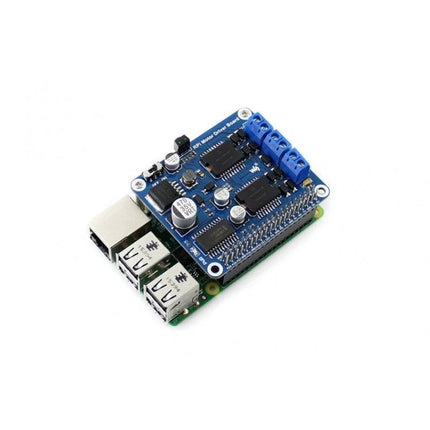

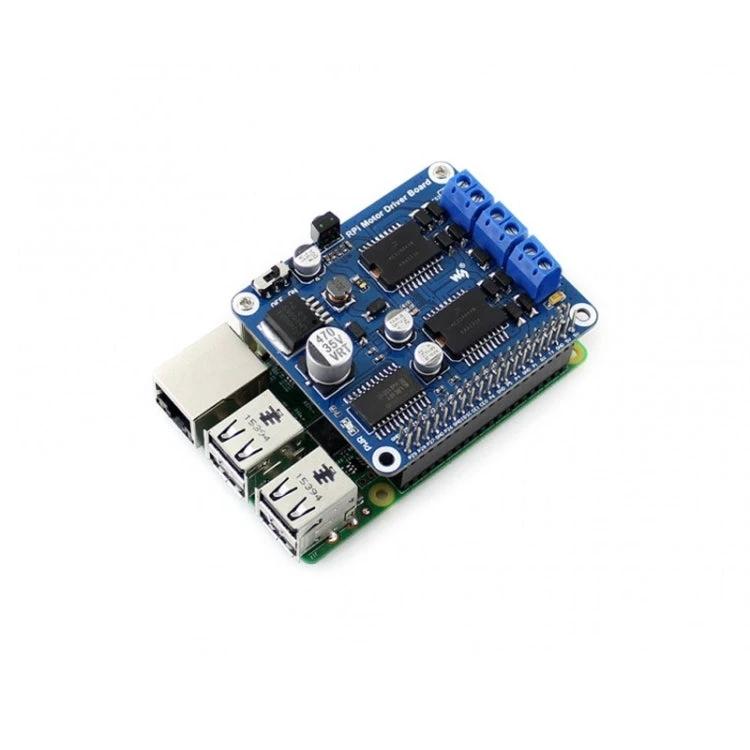

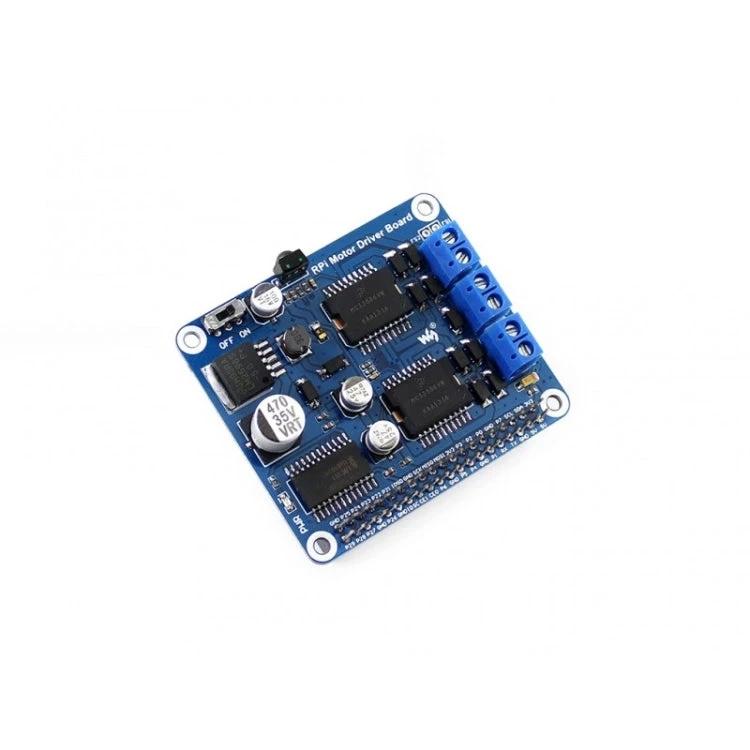

The Waveshare Raspberry Pi Motor Driver Board is an expansion accessory for controlling DC and stepper motors with compatible Raspberry Pi models, including A+/B+/2B/3B/3B+.
For robotics projects or automated setups, this board enables users to drive motors efficiently, integrate infrared remote control, and manage power safely, making it suitable for building remote-operated devices or prototypes.
- Supports bidirectional DC motor control with Freescale H-bridge driver for versatile operation.
- Onboard 5V regulator supplies up to 2A to power the Raspberry Pi directly from the board's input.
- Includes an IR receiver for adding remote control functionality to your projects.
- Features multiple protections like a 2A self-recovery fuse, short-circuit shutdown, and reversed polarity safeguards for reliable performance.
- Accommodates power inputs from 7V to 40V, with single motor outputs up to 5A.
This board fits well in educational, hobbyist, or prototyping scenarios where safe and straightforward motor integration is needed.
