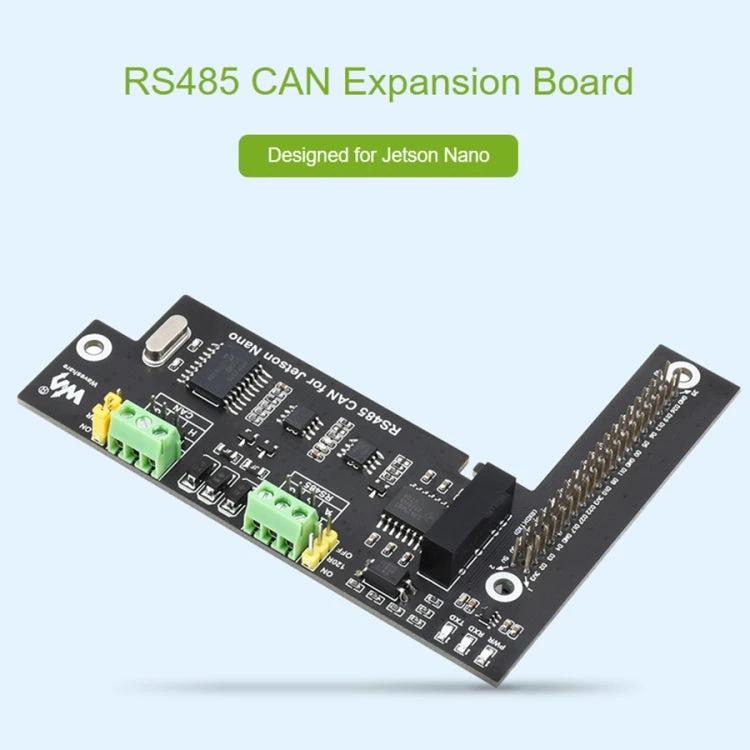

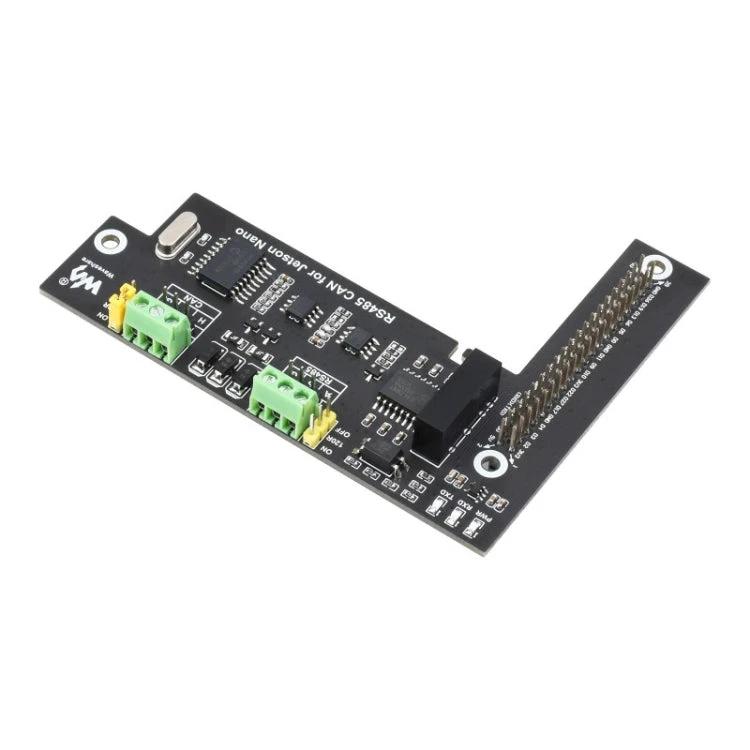

The Waveshare RS485 CAN Expansion Board is designed for Jetson Nano projects, offering reliable interfaces for CAN and RS485 communication. It features a standard 40PIN GPIO header for easy attachment, making it a practical add-on for embedded systems development.
This board suits scenarios like IoT applications, automotive interfaces, or industrial automation, where you need to integrate CAN bus or RS485 protocols. It allows developers to handle communication tasks efficiently, reducing the need for additional hardware or complex coding for basic operations.

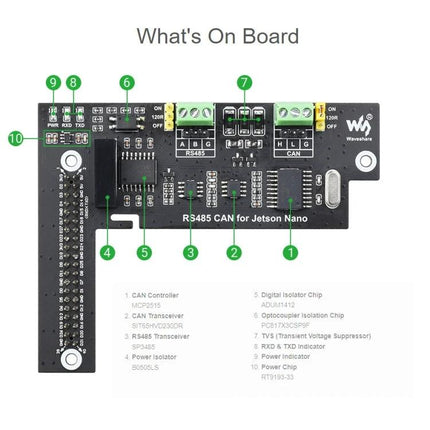

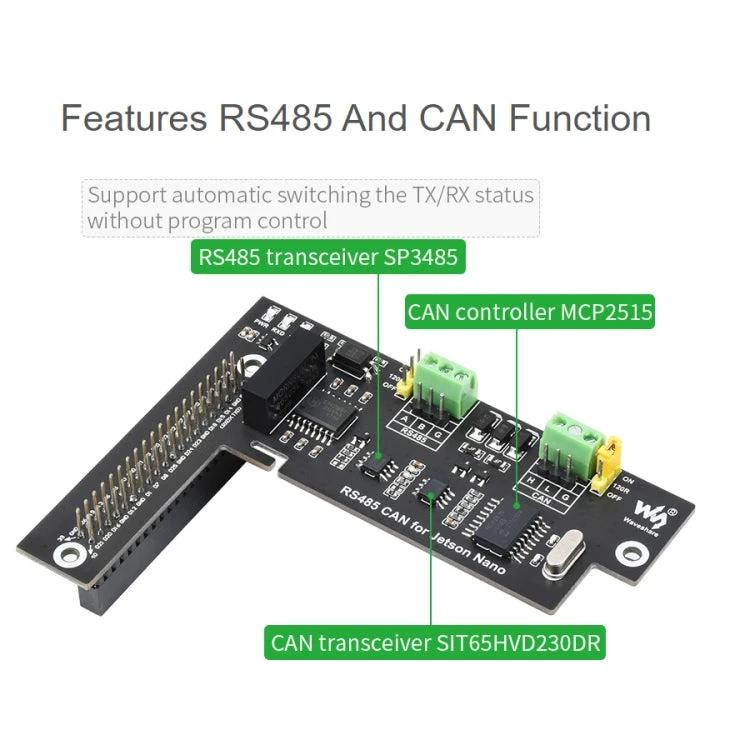

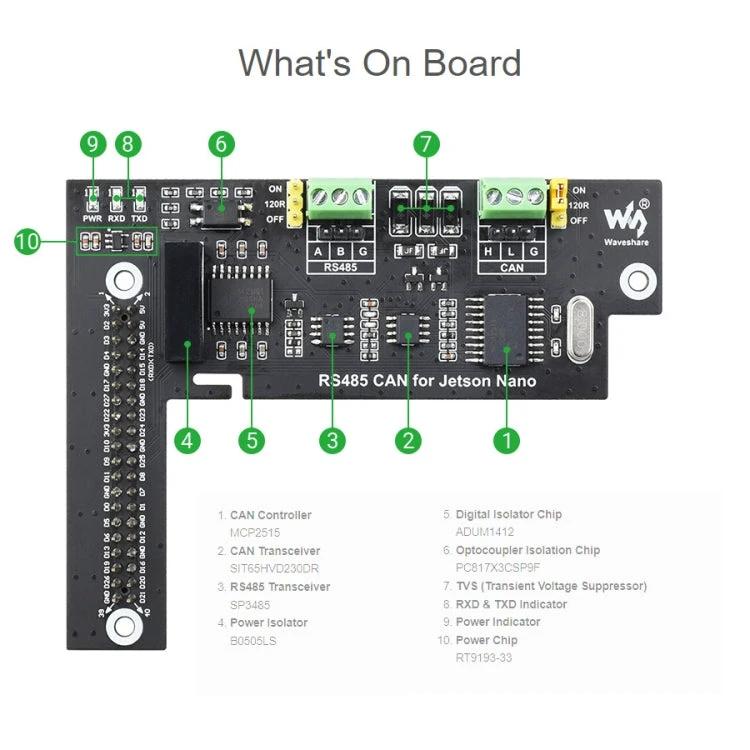

- Equipped with MCP2515 CAN controller and SIT65HVD230DR transceiver for SPI-based CAN functionality.
- RS485 via UART with SP3485 transceiver, supporting half-duplex and automatic TX/RX control without extra programming.

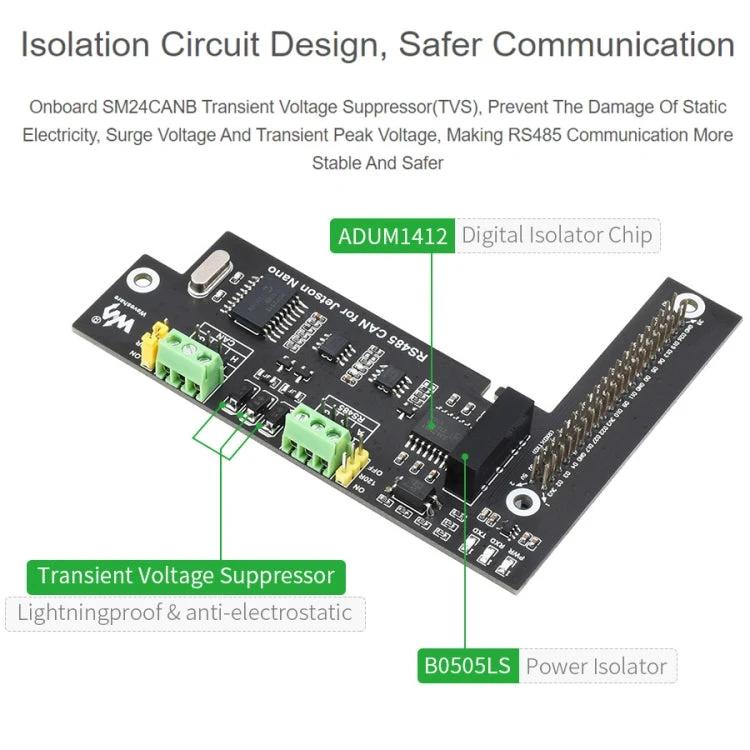

- Onboard TVS and digital isolation for enhanced protection against surges and interference.

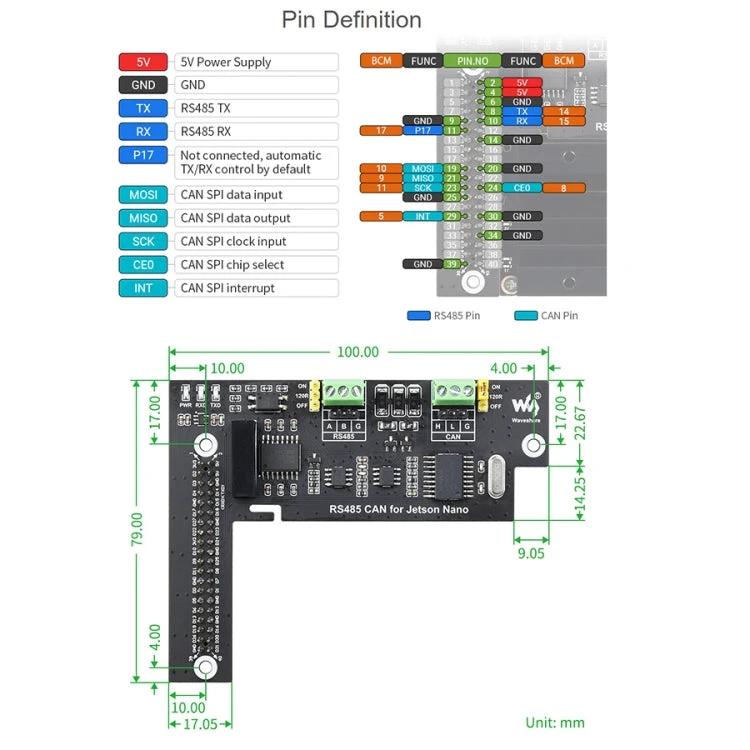

- Reserved control pins for flexibility with other boards, plus 3.3V operation and 100 x 79 mm dimensions.
- Includes development resources like Python examples for quick setup.
Light specifications include 3.0mm mounting holes and compatibility with Jetson Nano. This board fits well for makers and engineers seeking straightforward, protected communication expansion in their projects.
