The Waveshare XCore407I is a compact core board featuring the STM32F407IGT6 MCU, designed for electronics development projects. It includes essential onboard components for straightforward integration into user systems. This board suits tasks like prototyping embedded systems, where reliable connectivity and processing power are needed. For instance, it's useful for developing applications involving USB, Ethernet, or real-time control, allowing users to test and iterate designs efficiently. Features the STM32F407IGT6 with Cortex-M4 core, operating up to 168MHz for handling complex computations. Includes USB HS and FS connectors, Ethernet RJ45 port, and 1G Bit NandFlash for data storage. Accessible I/O ports via 2.0mm pin headers, facilitating easy expansion and connection to peripherals. Onboard power management with voltage regulators and indicators for stable operation. Supports debugging via JTAG/SWD and multiple communication interfaces like SPI, I2C, and CAN. Comes with crystals for accurate timing in RTC and high-speed operations. Light specifications include 1024kB Flash and 192kB SRAM. This board fits developers and hobbyists working on IoT, automation, or educational projects requiring a versatile STM32 platform.

Read more less

The Waveshare MG996R is a metal gear servo designed for robotic and automation projects, offering dependable performance for precise control. In practice, this servo works well for tasks like maneuvering robotic arms, adjusting camera mounts, or building RC vehicles, where accurate positioning and quick responses are important for smooth operation. Delivers torque of up to 11kg/cm at 6V, suitable for lifting or moving components in moderate-load scenarios Achieves speeds of 0.18s per 60° at 6V, allowing for efficient motion in dynamic applications Features a 180° rotation angle, providing flexibility for various movement requirements Incorporates durable metal gears that resist wear better than plastic alternatives Operates on a standard voltage range of 4.8V to 6V, ensuring compatibility with common power supplies Comes in a compact size of 40.7mm x 19.7mm x 42.9mm and weighs 55g, making it easy to integrate into tight spaces This servo is a practical choice for hobbyists, students, and engineers working on DIY robotics, providing the reliability needed for educational and prototyping efforts.

Read more less

The Waveshare MG90S is a compact micro servo featuring metal gears, suitable for a range of hobby and educational applications. In hobby projects, such as building robotic arms or RC vehicles, this servo provides reliable angular movement for precise control of small mechanisms, helping users achieve accurate positioning without added bulk. Delivers torque of up to 2.8kg/cm at 6V, enabling it to handle light loads effectively in dynamic setups. Offers speeds like 0.09s per 60° at 6V, allowing for quick and responsive actions in time-sensitive tasks. Features a 180° rotation angle, supporting a broad range of motion for versatile project needs. Incorporates durable metal gears to withstand repeated use, reducing wear compared to plastic alternatives. Compact dimensions of 22.8mm x 12.2mm x 28.5mm and a lightweight 12.2g design, making it easy to integrate into space-constrained builds. This servo fits well in electronics kits for students or makers exploring automation, offering practical performance for everyday prototyping and experimentation.

Read more less

The Waveshare AlphaBot2 is a robot building kit designed for use with Raspberry Pi boards, providing a straightforward platform for robotics experiments. In practical scenarios, this kit helps users develop projects like line tracking or obstacle avoidance, making it useful for educational purposes, prototyping, or hobbyist explorations without the need for advanced tools. Modular 2-layer design for enhanced stability and easy assembly, requiring no soldering or complex wiring. Includes 5-channel infrared sensors for accurate line tracking and onboard modules for obstacle detection. Features a TB6612FNG motor driver for efficient control and RGB LEDs for visual feedback. Upper adapter board with components like a voltage regulator and servo controller for seamless Raspberry Pi integration. Supports various remote controls via Bluetooth, infrared, or WiFi for flexible operation. Light specifications include compatibility with Raspberry Pi 3 Model B and analog sensor support. This kit fits well for beginners and enthusiasts seeking an accessible entry into robotics development.

Read more less

The Waveshare Infrared Photo Interrupter Sensor offers reliable detection for applications like speed monitoring. This compact sensor uses infrared technology to detect interruptions in a beam, providing clear digital signals without interference from ambient light. In practical scenarios, such as motor speed detection in robotics or pulse counting in DIY electronics projects, this sensor helps users measure rotational speeds accurately by triggering outputs when an object passes through its beam. Infrared detection minimizes external light interference for consistent performance Schmitt trigger ensures stable signal waveforms, reducing noise in outputs Built-in indicator light shows signal status, aiding in setup and troubleshooting Compact dimensions of 26.8mm x 15mm x 18.7mm with 3mm mounting holes for easy integration Operates on 3.3V to 5V power, compatible with common microcontrollers like Arduino 6mm gap width allows for versatile object detection in various setups Digital output simplifies connection to microcontrollers for straightforward data reading With its straightforward design, this sensor suits hobbyists and engineers working on automation or prototyping projects needing precise, interruption-based sensing.

Read more less

The DTECH RS232 to RS485 signal converter enables seamless conversion between RS232 and RS485 interfaces, with integrated surge protection for enhanced reliability in data transmission. In industrial settings, this converter helps connect devices like computers to sensors or control systems over extended distances, reducing the risk of data loss from electrical surges and ensuring stable communication for monitoring and automation tasks. Bidirectional transmission compatible with RS-485 and RS-232 standards, supporting asynchronous half-duplex modes. Built-in 600W lightning surge protection on RS-485 lines to safeguard against voltage spikes. Automatic zero-delay transceiver conversion for effortless direction control without additional hardware. Supports transmission distances up to 1200m via twisted pair or shielded wire, with rates from 300 to 115.2kbps. Compact ABS construction, measuring 51.8 x 17.8 x 35.7mm and weighing about 40g, for easy integration into tight spaces. This converter fits well in applications involving industrial control, digital instrument acquisition, or multi-serial port setups, providing practical protection and compatibility for everyday use.

Read more less

This ADS-B antenna is designed for receiving and tracking aviation signals, operating within the 1060-1120 MHz frequency range. It's a compact tool for enthusiasts and professionals interested in flight data monitoring. In everyday use, this antenna helps capture ADS-B signals from aircraft, making it useful for personal aviation tracking setups, such as monitoring flights from home or during outdoor activities. It can be mounted on conductive surfaces to minimize interference, improving signal clarity in various environments. Gain of 2.0dBi for effective signal reception at the specified frequency Constructed with durable electronic components to withstand regular use Compact size of 17.9 x 2 cm and lightweight at about 15 grams for easy portability and installation Reduces electrostatic coupling interference when fixed on grounded objects Compatible with standard ADS-B receivers for seamless integration Simple setup that supports both indoor and outdoor applications This antenna fits well for aviation hobbyists or those needing reliable signal tracking without bulky equipment, offering a practical solution for clear, uninterrupted data collection.

Read more less

This adjustable USB power supply regulator provides a straightforward way to control output voltage for various electronic devices, helping to ensure compatible power delivery. In practical scenarios, it's useful for electronics enthusiasts working on DIY projects, such as testing circuits, prototyping gadgets, or powering sensitive components where precise voltage adjustments prevent damage or instability. Features a multi-turn precision potentiometer for accurate manual voltage adjustment from 1-24V. Accepts USB 5V male input for simple connectivity with standard chargers or computers. Compact dimensions of about 7x2.3x1.3cm and lightweight at 25g, making it easy to integrate into tight spaces. Supports up to 3W power output, suitable for low to moderate energy needs. Includes a protective shell with a voltage display in a random color for basic monitoring. This regulator fits well in scenarios requiring portable, adjustable power solutions for hobbyist electronics, offering reliable performance for everyday testing and development tasks.

Read more less

These audio amplifier boards, featuring the TDA2030A chip, are practical components for DIY electronics enthusiasts building custom audio setups. For hobbyists working on projects like amplifying sound in speakers or simple audio devices, these boards offer straightforward integration with adjustable controls to fine-tune output, helping achieve clear sound without complex wiring. Equipped with a TDA2030A chip for 18W mono amplification Includes a 10K adjustable resistor to easily modify volume levels Features a speaker terminal block for secure and simple connections Has a power indicator light to confirm operation at a glance Exposes main pins for direct audio signal input Operates on a 6-12V power supply for versatile compatibility Light specifications: Each board is designed for standard DIY use, with the set providing five pieces to support multiple builds. This setup fits well for beginners or makers seeking reliable, easy-to-use audio components in their projects.

Read more less

This ATX Power Transfer Adapter Board serves as a practical tool for desktop PC systems, enabling secure power connections and management. In scenarios like custom PC builds or component testing, it helps distribute power efficiently, allowing users to monitor and control outputs to prevent potential issues. Includes a power output indicator for easy status checks. Features a module switch to safely turn off outputs when needed. Supports large current through its output terminals, suitable for demanding setups. Equipped with protection fuses for each of the four voltage groups, enhancing safety. Utilizes a 24-pin connector compatible with ATX systems and some BTX types. With dimensions of 128 x 48 x 30mm, it offers a compact design that fits into various PC cases for reliable power handling. This board is ideal for enthusiasts assembling or maintaining ATX-compatible desktop systems, providing straightforward power management solutions.

Read more less

The Adjustable PWM Signal Generator is a practical device for producing square wave signals, commonly used in electronics for tasks like motor speed control and dimming applications. In a typical use case, this generator helps in projects where precise pulse signals are needed, such as adjusting the speed of a DC motor in a robotic arm or controlling solenoid valves in automated systems, by allowing users to fine-tune frequency and duty cycles without directly powering the loads. Offers two operating modes: PWM for continuous frequency and duty cycle adjustments, and PULSE for setting specific pulse widths, delays, and counts. Supports a wide input voltage of 3.3V to 30V with anti-reverse protection, ensuring safe operation across various power sources. Features a start/stop button and external switch compatibility for easy signal control. Provides adjustable frequency from 1Hz to 150kHz and duty cycle from 0-100% in 1% steps. Includes convenient 5.08mm screw terminals for straightforward wiring. Compact size of 79mm x 43mm x 30mm and lightweight at 40g, making it easy to integrate into projects. This signal generator fits well for electronics enthusiasts, hobbyists, and engineers needing reliable pulse generation for control systems, offering flexibility in settings to match specific project requirements.

Read more less

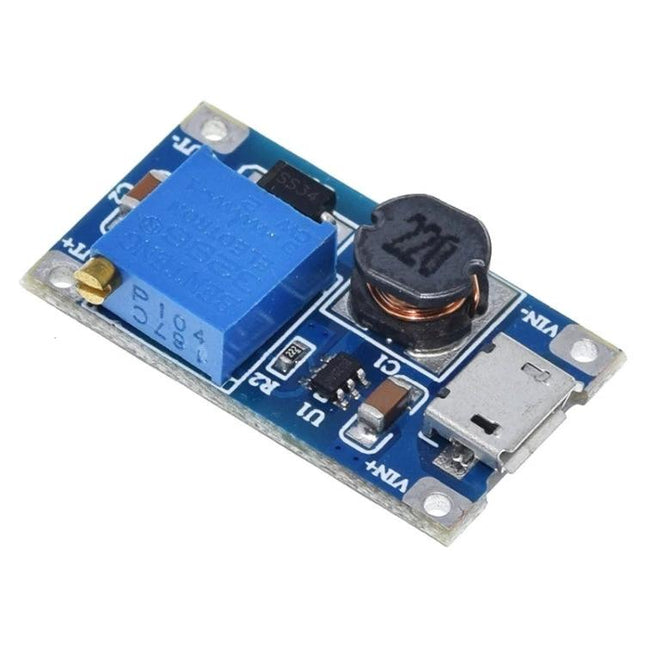

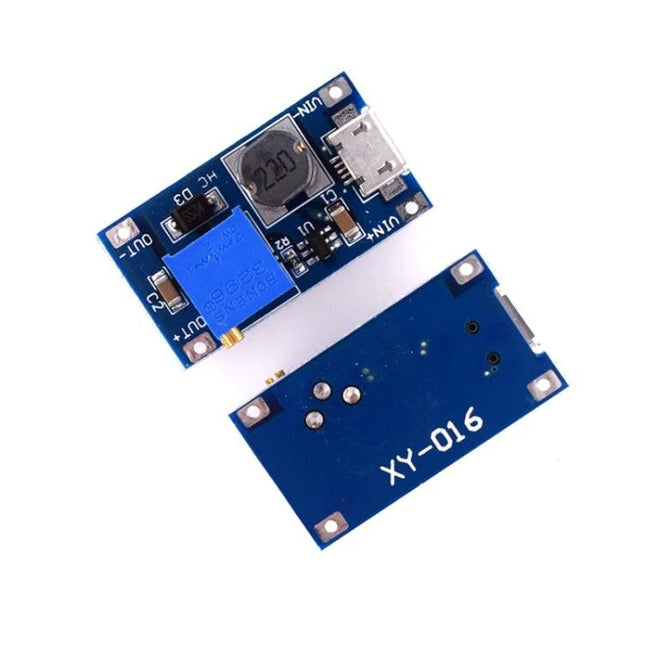

The HW-183 is an adjustable voltage booster that steps up input voltages for powering electronic devices and charging applications. In practical use, this module can convert a low-voltage source, such as from a MicroUSB charger, to higher voltages like 9V, 12V, or 24V, making it useful for DIY electronics projects, sensor setups, or adapting power for older devices without needing bulky equipment. Wide input voltage range of 2V to 24V, with adjustable output up to 28V (recommended within 26V) Compact dimensions of 30x17x14mm for easy integration into small devices or enclosures Supports output currents up to 2A, though best used within 1A for reliability High conversion efficiency to minimize energy loss during voltage boosting MicroUSB input for straightforward connection to common power sources like phone chargers Boost-only design, ensuring output exceeds input voltage as needed This voltage booster suits hobbyists and makers who require a versatile, space-saving solution for precise power management in portable or custom electronics setups.

Read more less

This 5V USB power converter efficiently steps down voltages from 12V or 24V systems to provide a stable 5V output for various USB devices. In practical scenarios, it's useful for charging mobile phones in cars, modifying electrical sockets for DIY projects, or integrating with solar batteries and generators to enable USB power on the go, ensuring your devices stay charged during travel or outdoor activities. Automatically detects and switches charging protocols for safer, more efficient USB connections Supports a wide input voltage range of 9-36V, compatible with common 12V and 24V sources like vehicles and batteries Simple wire connection for easy setup, ideal for modifications in plugs, strips, or sockets Includes a built-in charging control IC for reliable performance Output delivers a consistent 5V, suitable for standard USB devices Versatile applications include electric vehicles, motorcycles, and portable power setups Light specifications include an input of 9-36V and output of 5V, making it a practical choice for users seeking dependable voltage conversion in everyday or custom applications.

Read more less

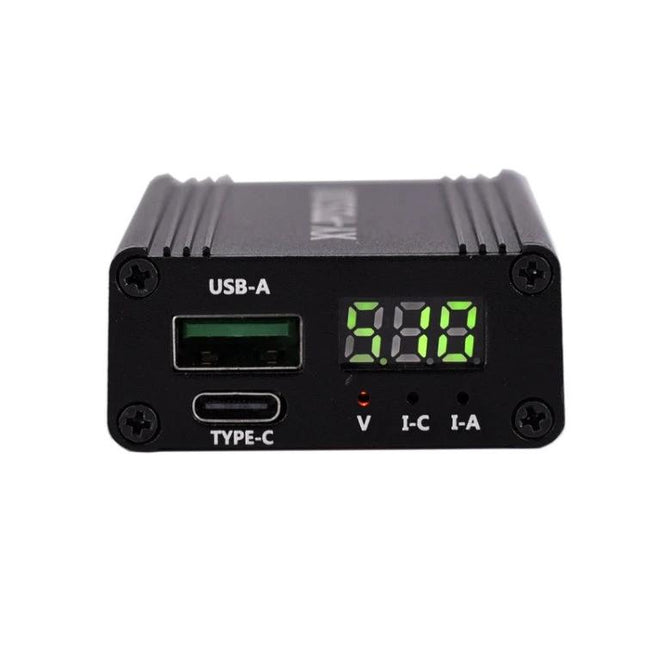

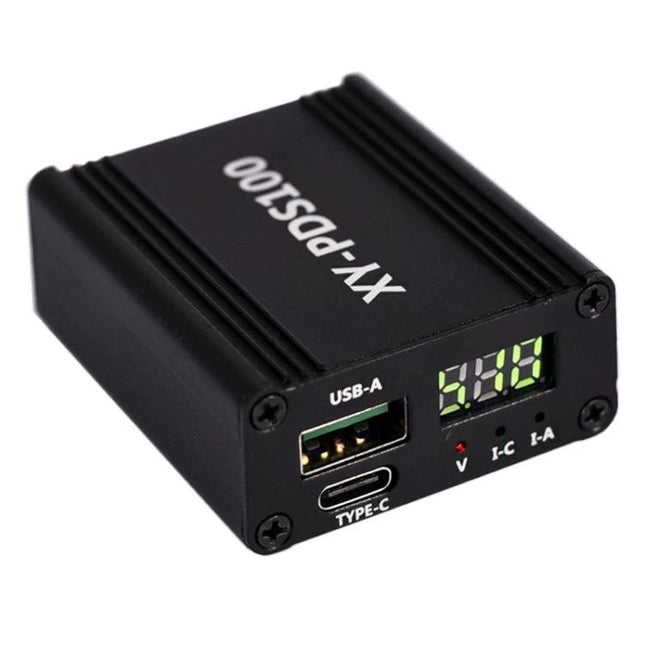

This 100W Type-C quick charger offers efficient power delivery for a variety of mobile phones and devices, featuring dual input ports for versatile connectivity. For everyday scenarios, such as charging smartphones during commutes or powering laptops in a home office, this charger helps maintain device battery levels without needing multiple adapters, making it suitable for users with diverse tech setups. Dual DC and Type-C input ports for flexible power sources Supports multiple fast charge protocols including PD 3.0, QC4+, and VOOC for broad device compatibility Integrated digital tube display shows real-time voltage and current, allowing easy monitoring of charging status Compact aluminum alloy shell, weighing about 60 grams and measuring 5.3 x 4.6 x 2.1 cm for easy portability Intelligent switching of display content to indicate active fast charge protocols Operates on DC 12-28V input, delivering up to 100W output for quick recharges Light specifications include support for various protocols like Huawei SCP and Samsung AFC, ensuring it works with many popular devices. This charger fits users seeking a practical, space-saving option for reliable daily charging needs.

Read more less

This dual-channel digital audio amplifier is built for music systems, providing straightforward signal amplification to power speakers. In everyday use, it's suitable for home audio setups or DIY projects, where it helps deliver clear sound from devices like computers or media players, ensuring balanced output without distortion in moderate volume applications. Class D amplification for efficient power use, minimizing heat and energy consumption. Delivers up to 20W output, compatible with 4-8 ohm speakers for versatile connectivity. Includes protection against output short circuits and overheating, with automatic recovery to prevent damage. Operates on 8-24V input, making it adaptable to various power sources. Compact module size of 43x55x14mm, easy to integrate into tight spaces or custom builds. This amplifier fits well for audio enthusiasts or hobbyists seeking a reliable, space-saving option for enhancing sound in personal or small-scale systems.

Read more less

The eight-channel relay module serves as a practical component for electronic projects, allowing users to control multiple circuits efficiently. In scenarios like DIY automation or robotics, this module helps manage various devices by switching them on and off, such as lights or motors, while ensuring safe operation through isolated wiring. Compatible with platforms including 51, AVR, and ARM microcontrollers for easy integration into development boards Features high-current relays rated at AC250V/10A or DC30V/10A, supporting a range of electrical loads Independent contact wiring for enhanced safety and reliability in circuit designs Standard interface that allows for straightforward expansion on existing setups Includes fixing screw holes for secure and simple installation in enclosures Compact size of 138x56x19.3mm, making it suitable for space-constrained projects Light specifications include its versatile compatibility and durable construction, fitting well for electronics enthusiasts and professionals seeking dependable switching solutions in their builds.

Read more less

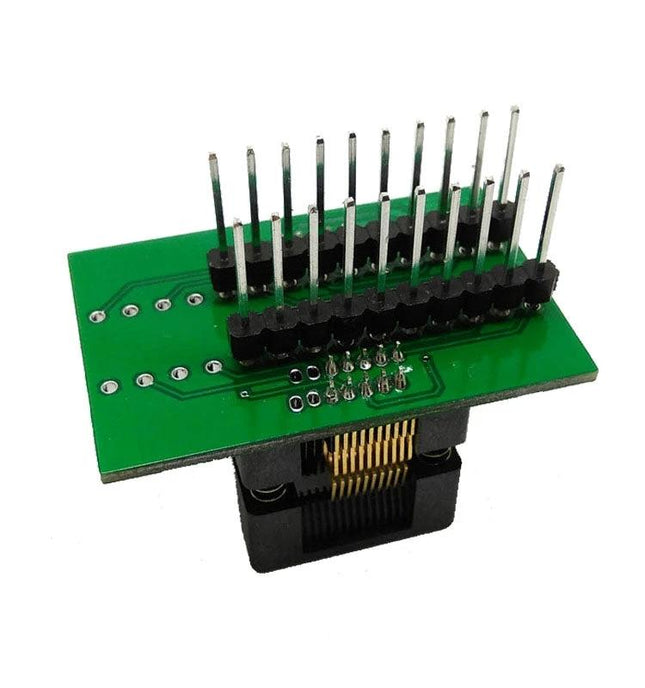

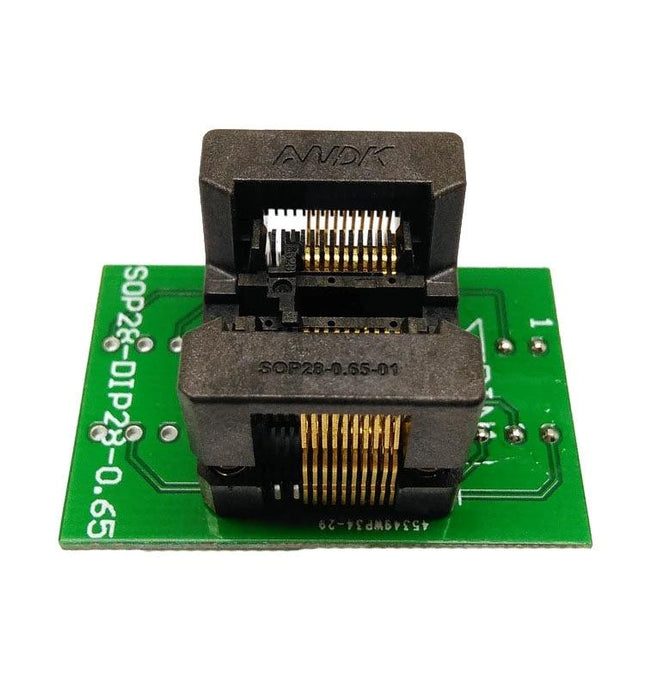

The Gold-Plated Dual Contact Adapter Socket serves as a reliable test block for integrated circuit (IC) testing, featuring double contact technology for enhanced stability. In electronics labs or manufacturing settings, this adapter helps engineers achieve accurate IC testing by maintaining secure connections, even under high-frequency conditions, reducing potential errors in signal transmission. Double contact design ensures stable and consistent electrical contact Constructed with beryllium copper shrapnel for low impedance (under 25 milliohms) and good elasticity Insulator made from durable PEI or PPS materials, offering fire retardant properties and a wide temperature range (-65 to 155 degrees Celsius) Thick gold plating provides ultra-low contact impedance for high reliability Supports 20 cores with 0.65mm lead spacing, compatible with chips up to 4.4mm wide Engineered for a service life of up to 20,000 uses through injection molding process This adapter fits applications requiring precise, high-frequency IC testing, making it suitable for professional engineers seeking dependable performance in routine evaluations.

Read more less

This QFN44-0.5 test socket is designed for programming and testing integrated circuits, offering a reliable interface for QFN44 chips. In electronics development, it's useful for engineers and hobbyists to securely connect and test IC chips without soldering, allowing for repeated read/write operations and high-frequency testing to verify chip functionality before deployment. U-shaped thimble for enhanced contact stability, reducing errors during testing Constructed with beryllium copper shrapnel for durable, conductive contacts Insulator made from PPS/PET materials for heat resistance and electrical isolation Pin spacing of 0.5mm to match QFN44 chip requirements Supports chip sizes up to 7x7cm, accommodating various IC configurations High-frequency capability for accurate performance evaluation Light specifications include 44 pins and injection-molded construction for precision fit. This socket suits applications in circuit prototyping and quality assurance for tech enthusiasts and professionals alike.

Read more less

The QFP48 programming socket serves as a reliable tool for testing and programming IC chips with a 0.5mm pitch. In practical use, this socket helps electronics engineers and hobbyists securely hold QFP48 chips during development or repair tasks, allowing for accurate pin connections and reducing the risk of errors in prototyping or quality checks. Compatible with QFP48 and PQFP48 packages, ensuring versatility for various IC chip types Features 0.5mm pin spacing for precise alignment with chip layouts All pins are led out in the order of the chip, simplifying wiring and connections Accommodates chips with a 7x7 mm body size (9x9 mm including pins) and 48-pin configuration Designed for straightforward integration into testing setups without complex tools This socket fits well in electronics workshops or labs where precise IC programming and testing are required, offering a practical solution for maintaining reliable connections during development.

Read more less

This USB socket serves as a reliable tool for programming and testing mobile phone components, specifically integrated circuit (IC) chips like EMCP. It's designed for tasks involving reading, writing, and stable testing of chips in a high-frequency environment. In practical use, this socket allows users to test IC chips without soldering. For instance, electronics technicians can place an IC in the socket, connect via USB to a computer, and perform diagnostics or programming, streamlining workflows in repair shops or development labs. Features a floating board structure for precise IC positioning and easy insertion/removal, enhancing efficiency. Uses beryllium copper shrapnel for contacts, ensuring durability with a service life of up to 100,000 uses. Supports hot plugging and includes a separate power switch for safe operation via USB or board connections. Compatible with 186-FBGA and 162-FBGA packages, with a 0.5mm lead spacing for accurate fits. Made with PET insulator material, providing stable performance in injection-molded construction. Eliminates the need for soldering by using an adapter board, making it user-friendly for repeated testing. This product fits well for professionals in electronics repair, hobbyists working on circuit boards, or developers needing a dependable testing interface.

Read more less

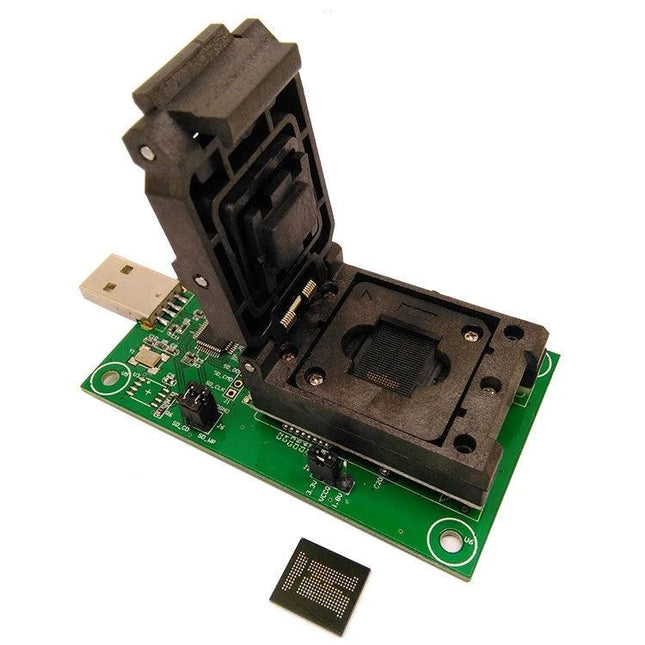

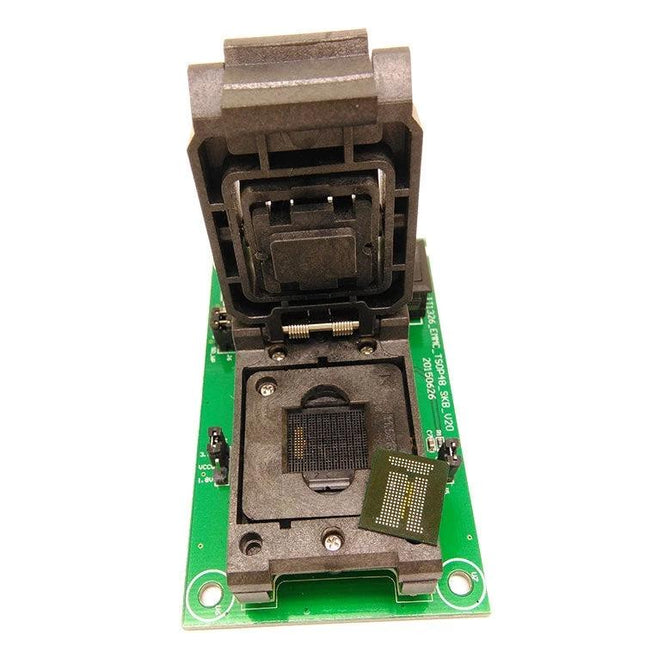

This IC test socket is designed for high-frequency testing and programming of integrated circuits, particularly for USB applications. It serves as a reliable tool for reading, writing, and verifying IC chips like EMCP221. In a typical use case, electronics technicians or hobbyists can place the IC into the socket, connect it via USB to a computer, and run tests without soldering. This setup allows for quick iterations in development or repair scenarios, improving efficiency by enabling hot plugging and precise positioning. Features a floating board structure for easy IC insertion and removal, reducing handling time. Constructed with beryllium copper shrapnel for contact points and PET for insulation, ensuring stable connections over repeated use. Supports compatibility with 186-FBGA and 162-FBGA packages, with a 0.5mm lead spacing. Includes a separate power switch and hot-plugging capability for safe, flexible testing. Offers a service life of up to 100,000 cycles, suitable for frequent professional use. Accommodates chips up to 11.5x13cm, eliminating the need for adapter board soldering. This socket fits well for developers and engineers working on circuit testing, providing a practical solution for accurate and efficient IC evaluation in various electronic projects.

Read more less

The QFN32 Flip Shrapnel Test Socket serves as a reliable tool for programming and testing QFN32 integrated circuit chips in electronic applications. In practical use, this socket allows engineers and technicians to securely insert and connect QFN32 chips for accurate programming or diagnostic testing, helping to streamline workflows in circuit development and quality assurance tasks. High-frequency compatibility for efficient IC operations Beryllium copper contacts ensure durable and stable connections PPS PET insulator material provides thermal and electrical resistance Accommodates 32-pin chips with precise 0.5mm pin spacing Supports chips measuring 5x5cm for a secure fit Flip design facilitates easy chip insertion and removal This test socket fits well in electronics labs or prototyping setups, offering a practical solution for those working with QFN32 ICs to achieve consistent testing results.

Read more less

This aluminum heat sink, sized at 150x60x25mm, helps manage heat in electronic components to prevent performance issues. For electronics enthusiasts or professionals, it's useful in projects involving circuit boards, power ICs, or transistors, where it dissipates heat effectively to avoid damage and ensure reliable operation. Constructed from durable aluminum in silver color for efficient thermal conductivity. Features 24 blades, each 1mm thick, on a 2mm base plate, enhancing surface area for better heat dissipation. Compact 150x60x25mm dimensions allow easy integration into various electronic setups, like audio devices or converters. Reduces the likelihood of overheating in sensitive components, promoting longer hardware lifespan. Passive cooling design means no additional power source is needed, making it straightforward for DIY applications. Suitable for a range of uses, including MOS tubes and video circuits, without requiring complex installation. This heat sink fits standard electronic cooling needs, particularly for those seeking a simple, effective solution for moderate heat loads.

Read more less

The CAN Bus Module connects to your Raspberry Pi Pico for reliable remote communication using the CAN protocol. It integrates seamlessly with Pico series boards, making it a straightforward addition to your microcontroller projects. In scenarios like automotive diagnostics or industrial automation, this module enables efficient data exchange between devices, helping you build systems that require robust, long-distance communication without complex setups. Compatible with Raspberry Pi Pico header for easy plug-and-play integration Utilizes MCP2515 CAN controller and SIT65HVD230DR transceiver for standard CAN functionality Supports SPI communication bus with baud rates from 5Kbps to 1Mbps Includes online development resources with C/C++ and MicroPython examples Operates on 3.3V to 5V, accommodating various power sources Compact size of 52mm x 21mm for space-efficient designs This module fits well into projects for electronics enthusiasts and professionals needing dependable CAN bus capabilities in their Raspberry Pi Pico setups.
