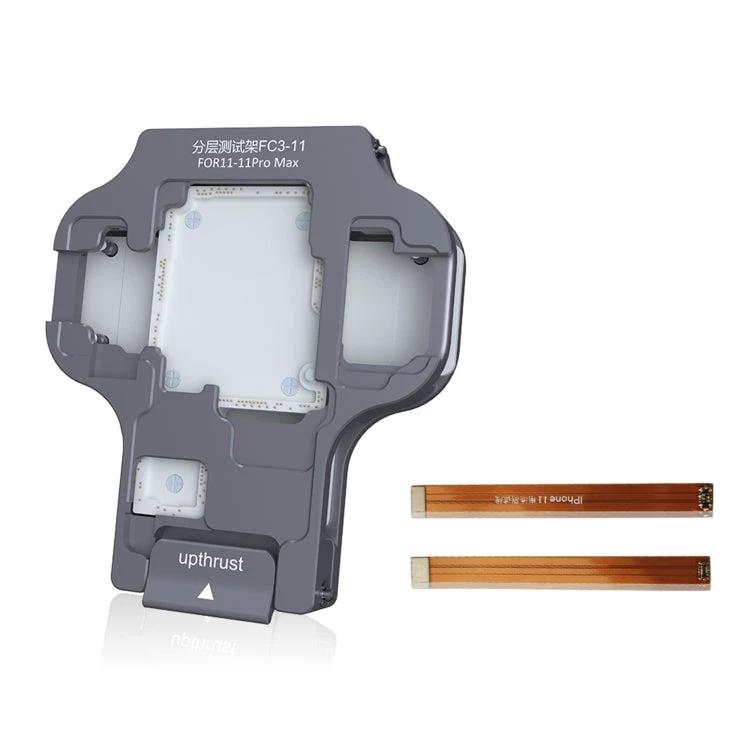

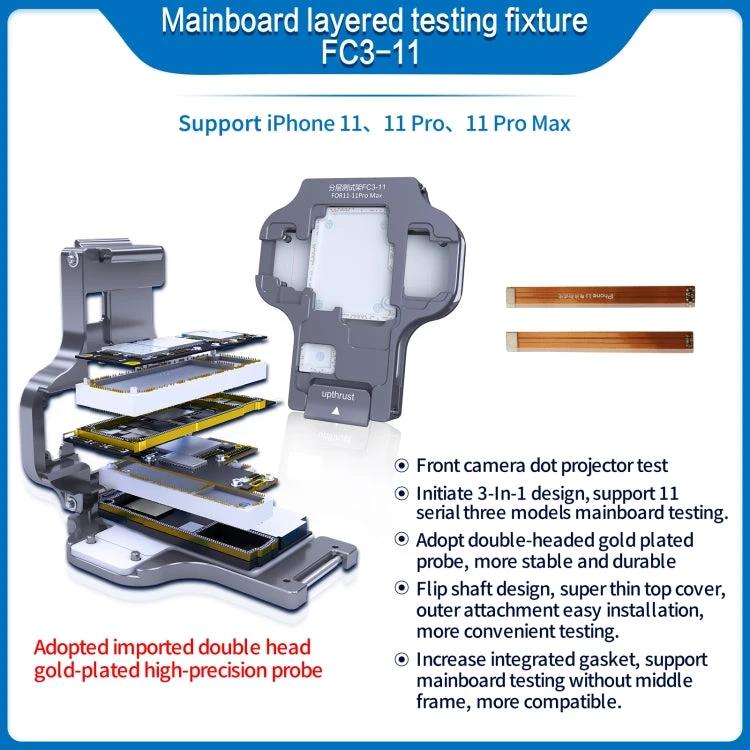

The Aixun FC3-11 is a testing fixture designed for iPhone 11 series mainboards to help technicians verify individual component function during repairs.
In a repair bench workflow it speeds diagnostics by allowing targeted checks of cameras, sensors and connectivity without full device reassembly, reducing repeated troubleshooting steps and saving technician time.
-

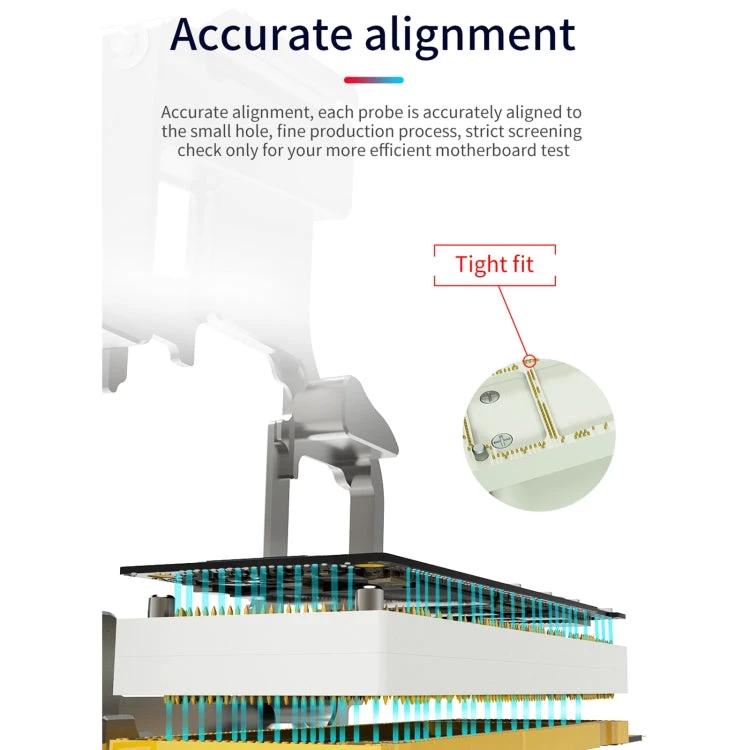

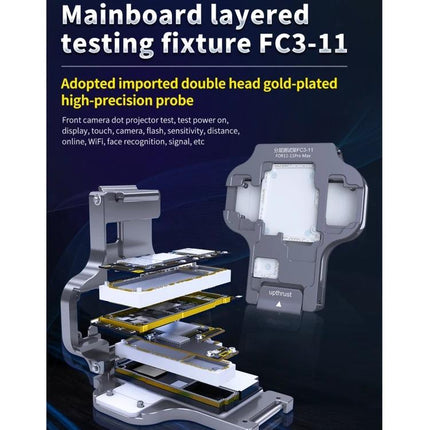

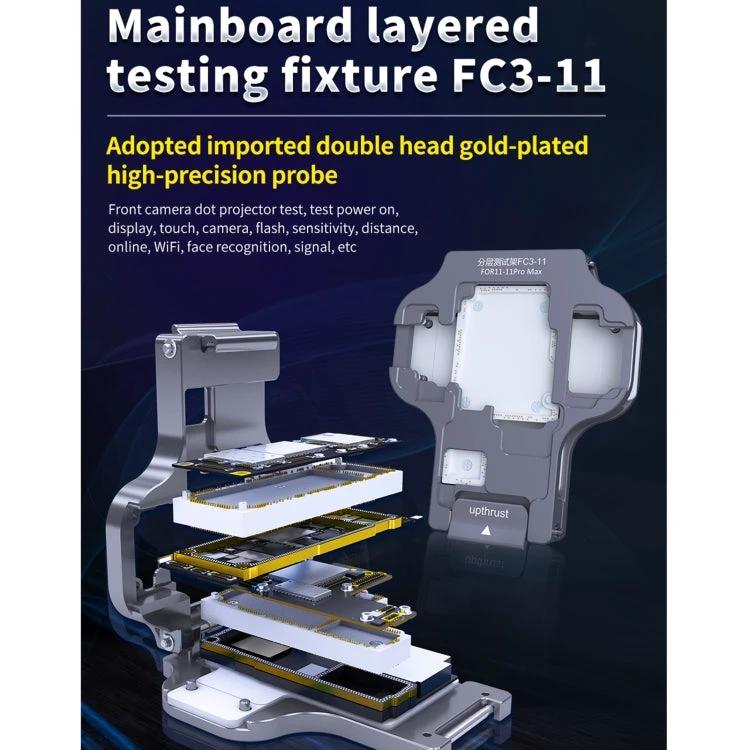

Precision probes: imported gold‑plated, high‑precision contacts for stable electrical connection and reduced oxidation.
-

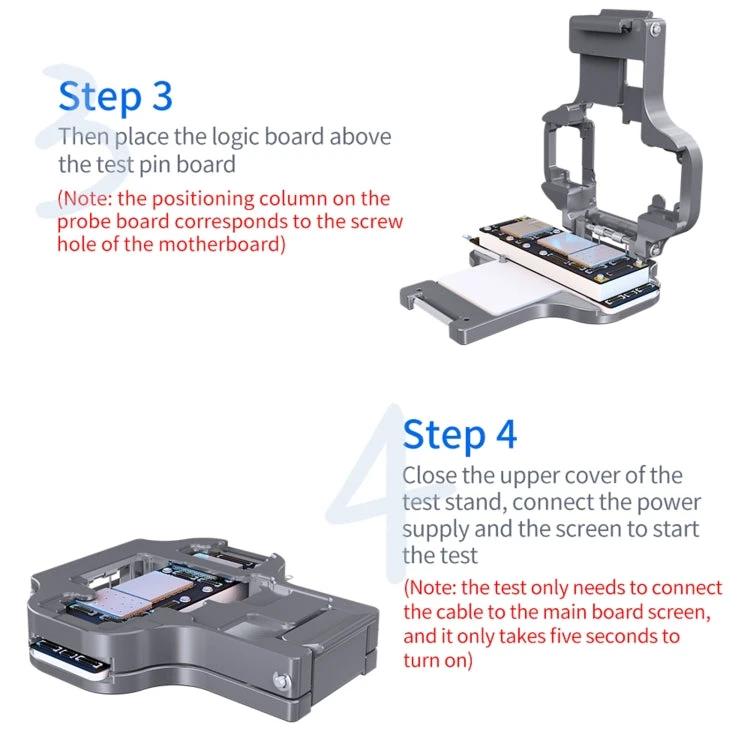

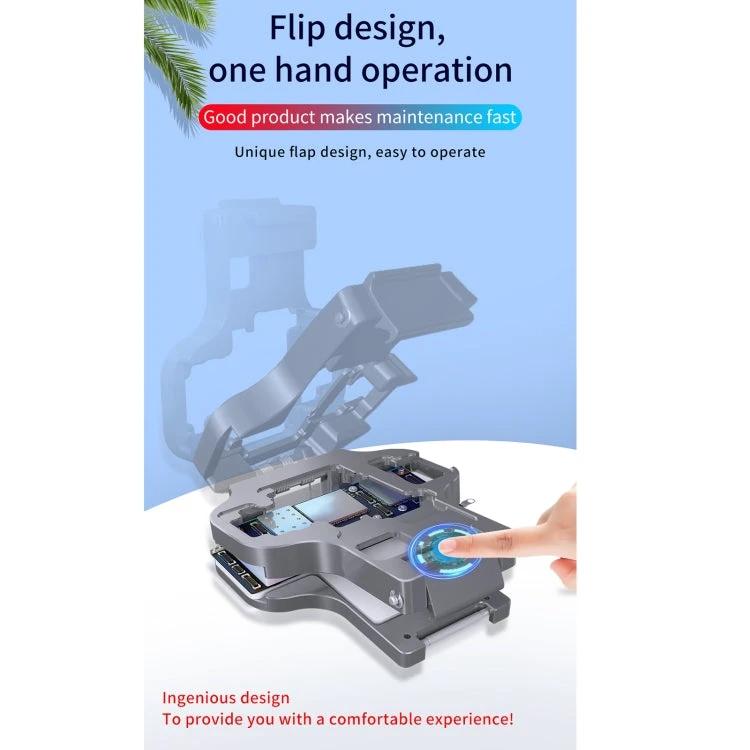

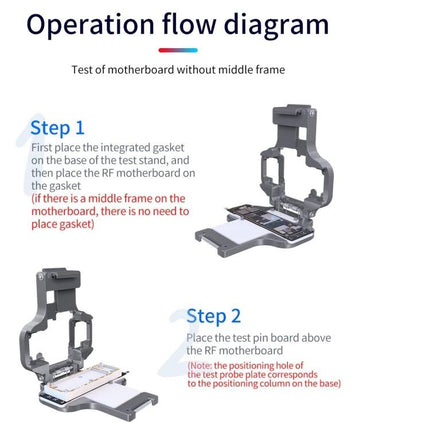

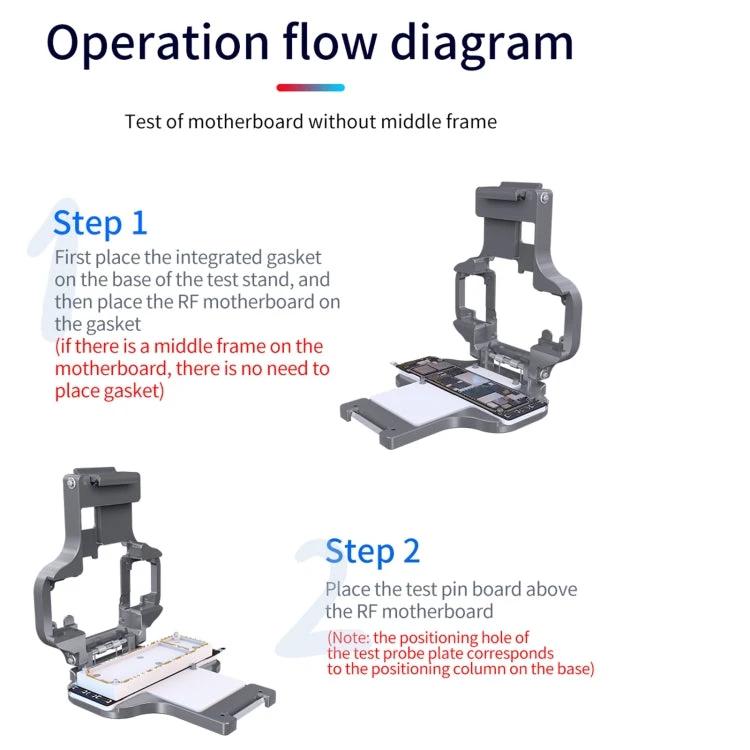

Flip alignment: hinged design with guide pins for repeatable positioning and easy access to test points.
-
Wear-resistant contacts: close-fit contact pads that tolerate repeated use and allow simple cleaning.
-

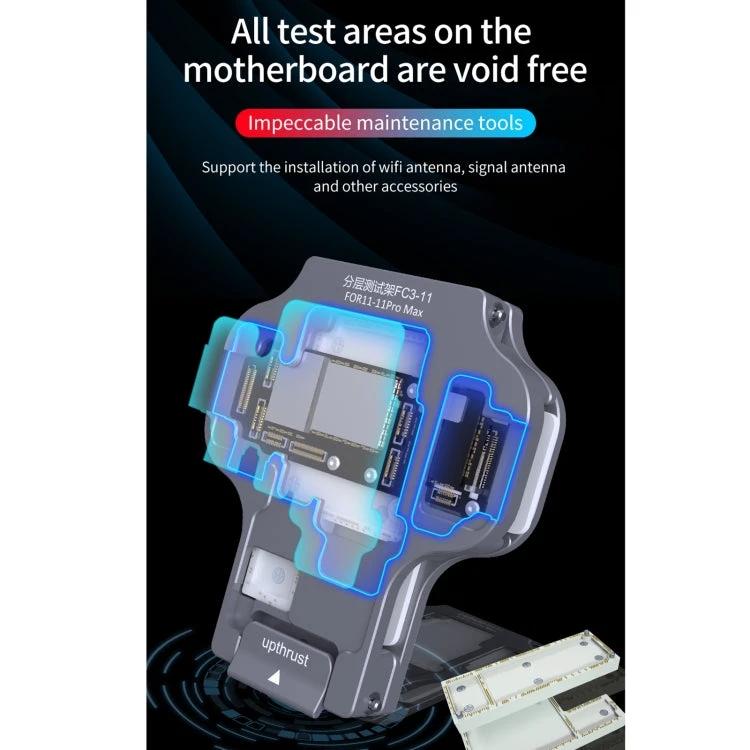

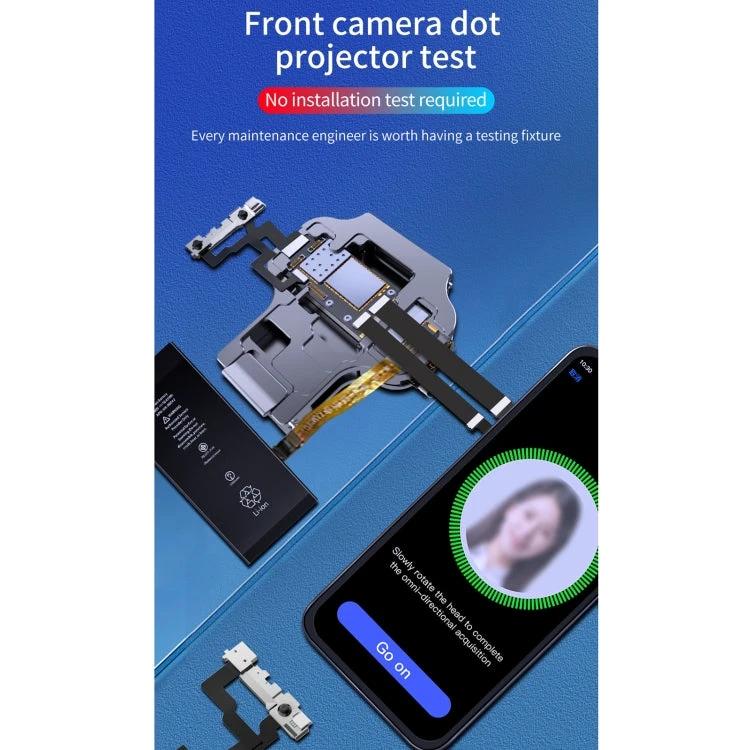

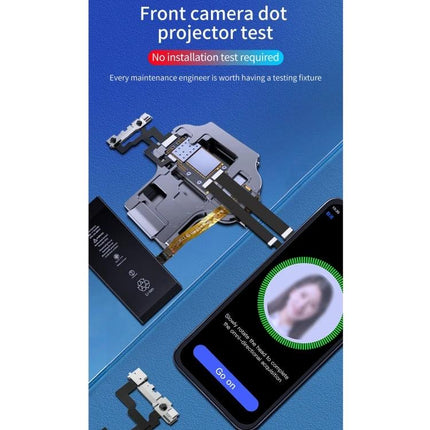

Comprehensive tests: supports power on, display, touch, front/back cameras, flash, proximity, Wi‑Fi and signal checks.
-
Thin top cover: super-thin overlay for straightforward installation and compatibility with outer attachments.

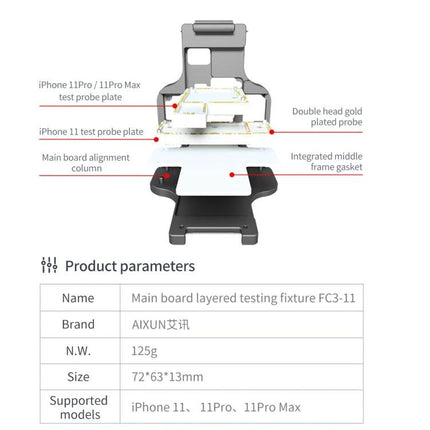

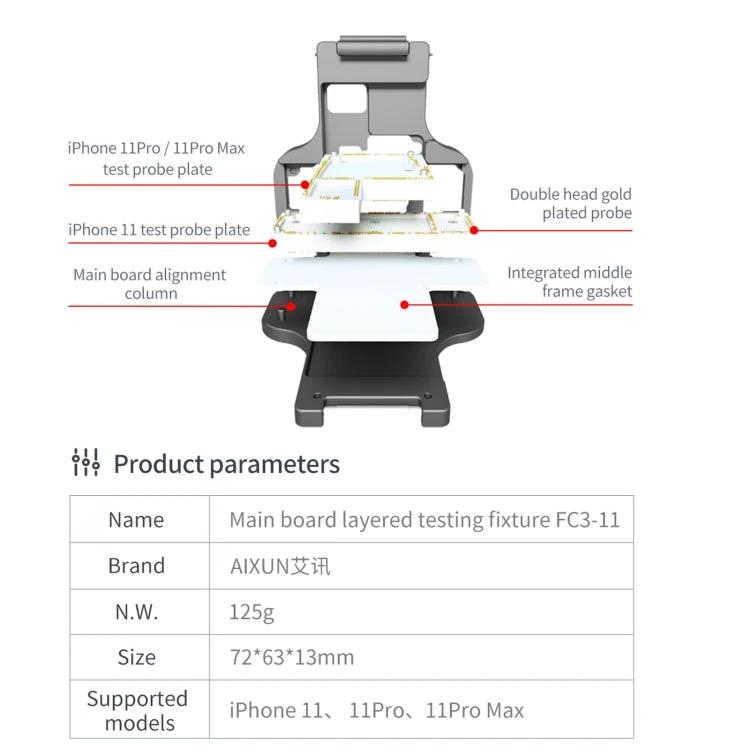

Light specifications: compatible with iPhone 11/11 Pro/11 Pro Max mainboards; metal frame, black finish; probe spacing matches factory test pads.
Fit: intended for professional repair benches and technicians working on iPhone 11 series mainboard diagnostics.
